Aluminum oil sight glass plugs

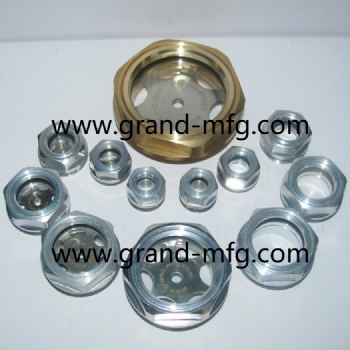

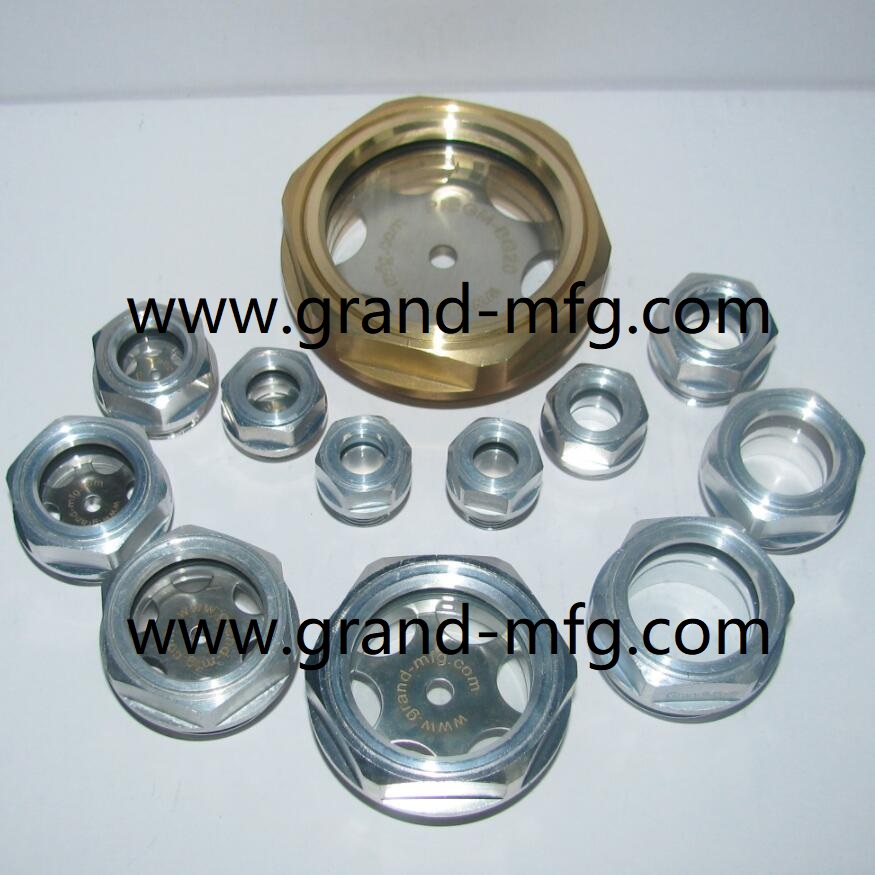

rotary vane vacuum pumps BSP thread aluminum oil level sighting glass gauge indicator supplier

rotary vane vacuum pumps BSP thread aluminum oil level sighting glass gauge indicator supplier

G1/2" 3/4" 1" 1 1/4" aluminum oil level sight glass
oil level gauge indicators manufacturer in China.
Any requirements to custom just contact GRAND-MFG.
INQUIRY

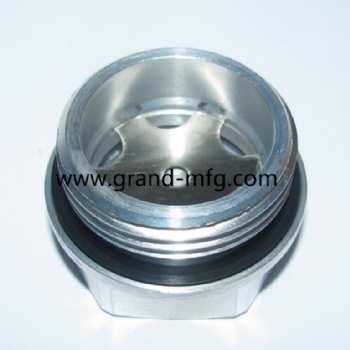

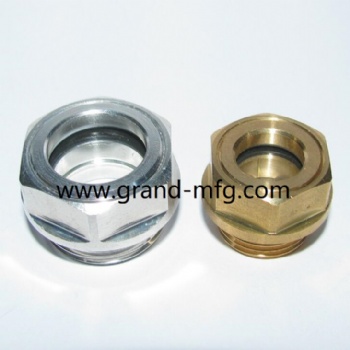

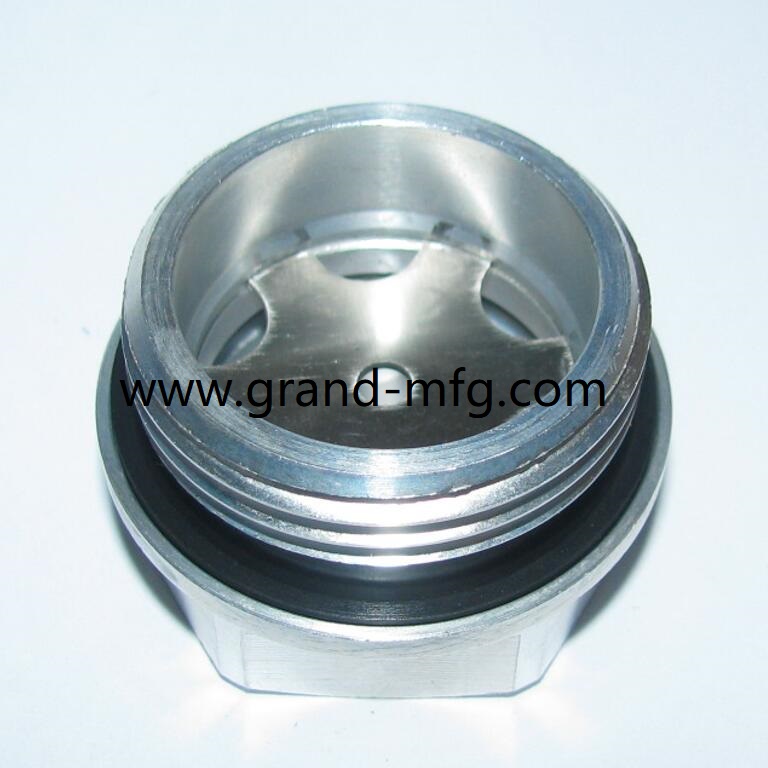

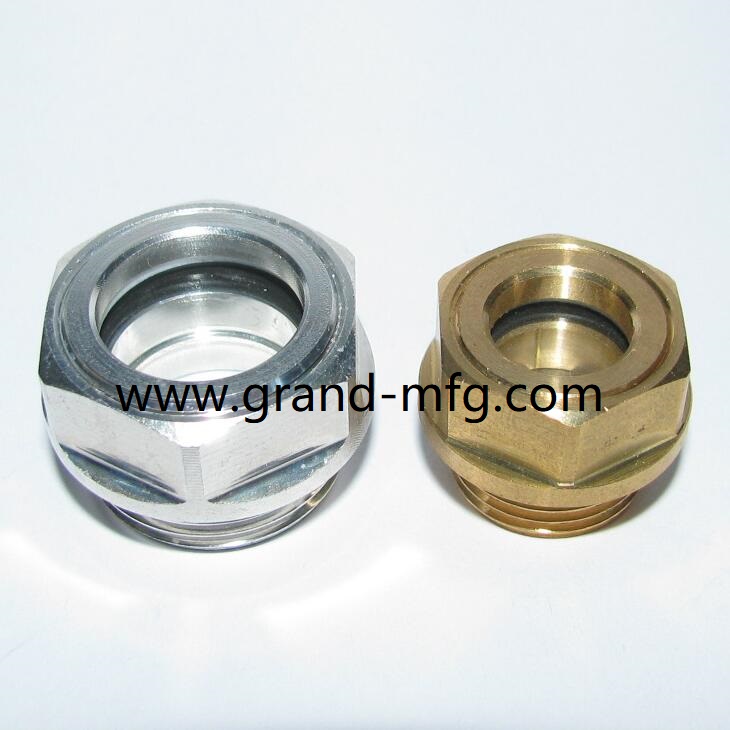

Aluminum Oil level sight glass

Material Body: Aluminum 6061 T6/Aluminum 6063

Finish: aluminum natural and aluminum oxidized color/ Anodizing color.

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

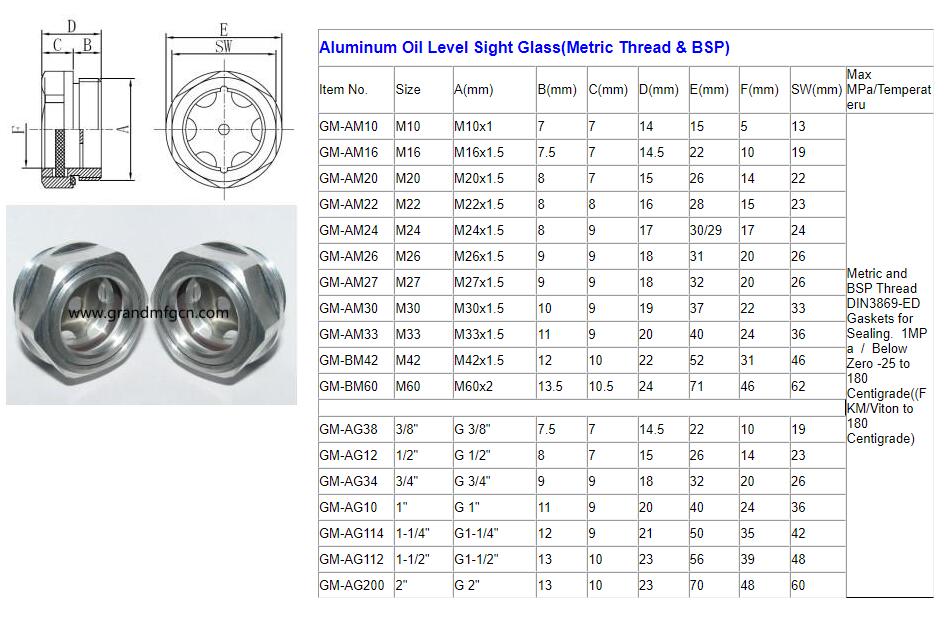

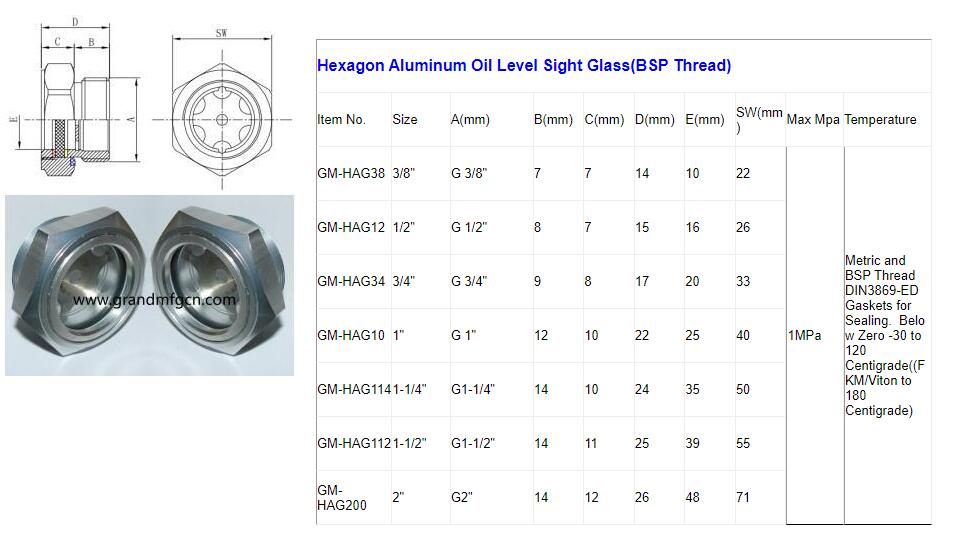

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

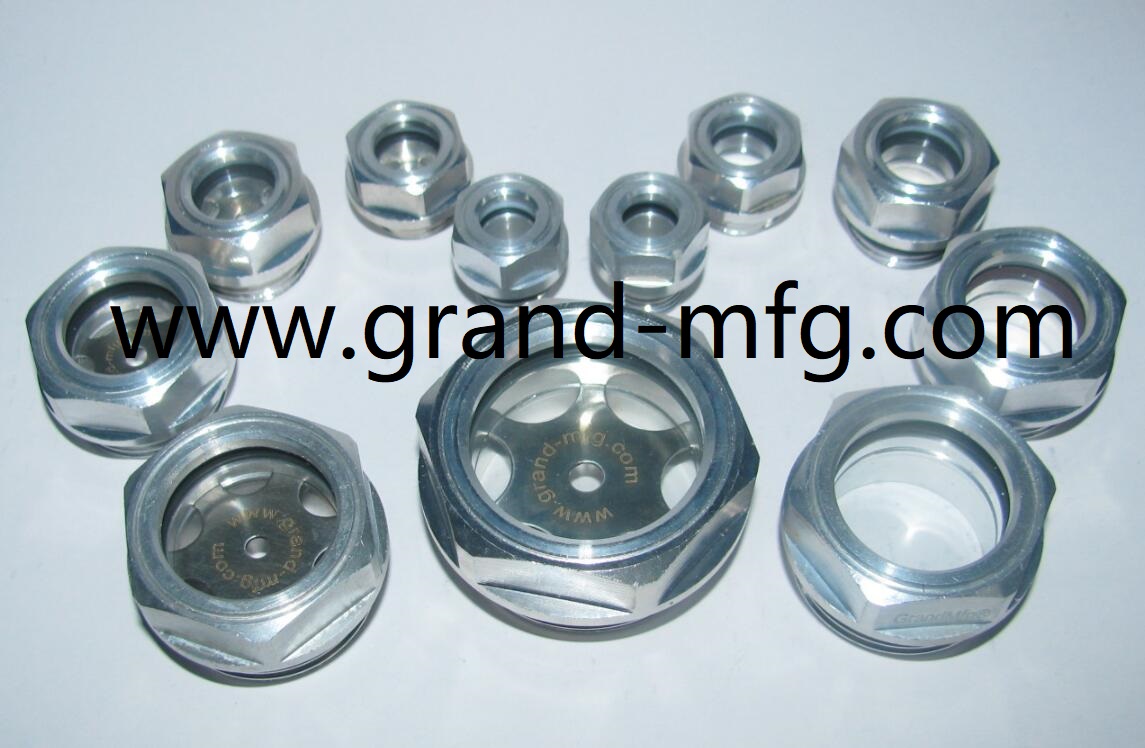

MILLED ALUMINUM SIGHT.jpg
