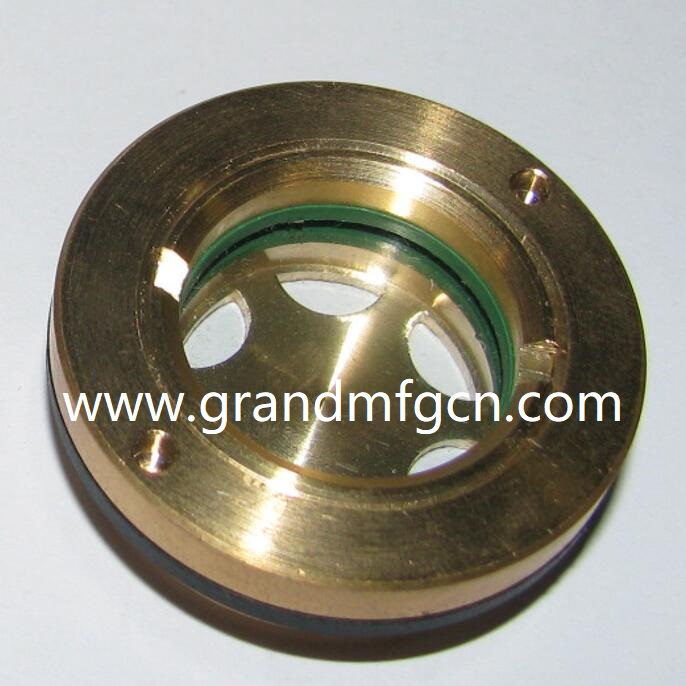

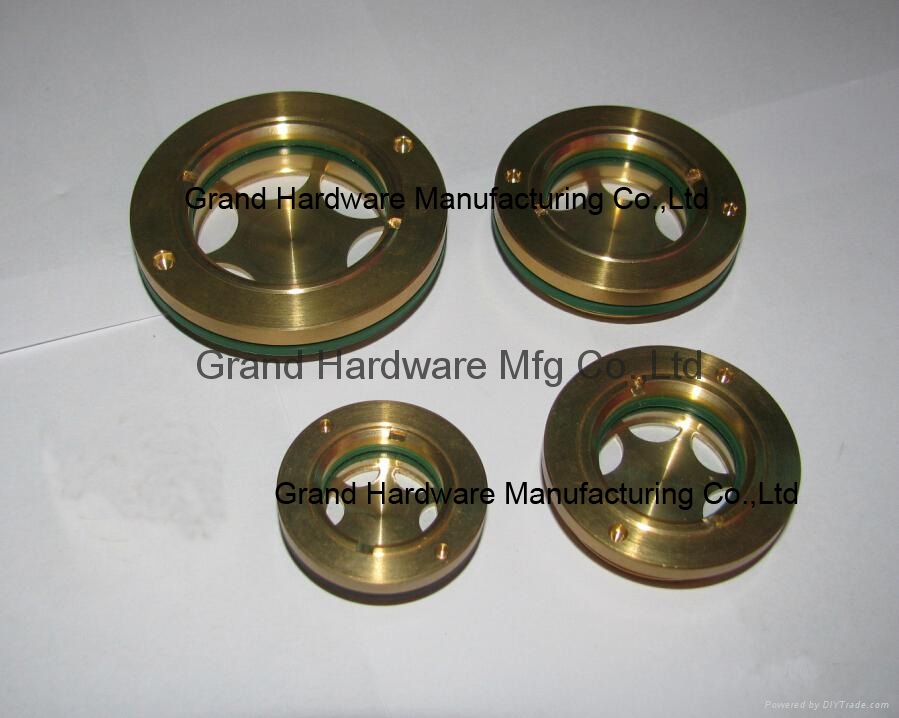

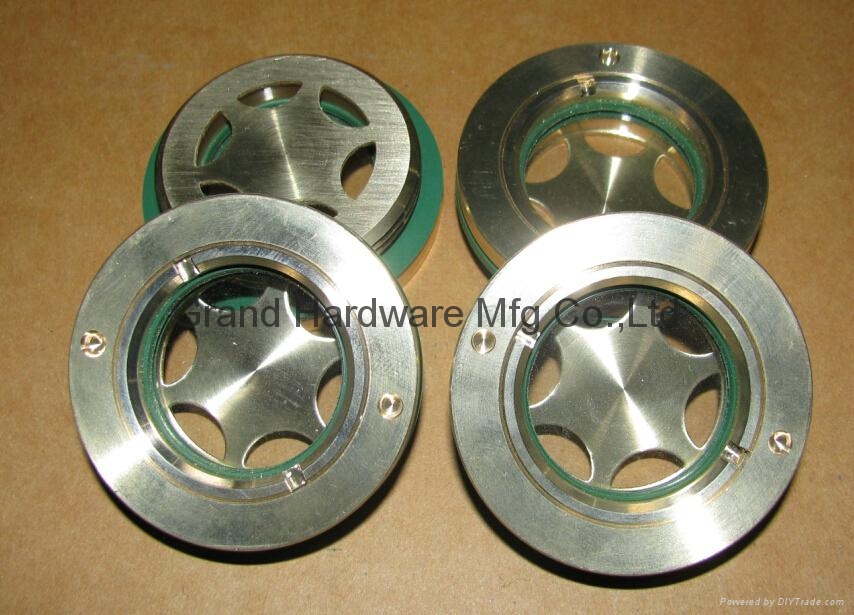

GrandMfg® Circular Brass Oil level Sight Glass Ölschauglas With Relfector(BSP & Metric Thread)

Brass Oil level sight glass,Bulls eye Sight Glass,Fluid level Sight Glass,Circular oil sight Glass

Oil level indicator sight glass,oil sight gauge,Oil sight windows,Visual level sight glass

Visual level indicator,Visual level sight gauge,domed shape sight glass.

Brass Oil Sight Glass Superior and Performance Suitable for a Wide Range of Applications NPT UNC and Metric Thread Options

Brass Oil Sight Glass Material and Design Perfect for Oil Receivers and Power Transmission NPT NPTF and BSP Thread Options

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range:  5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

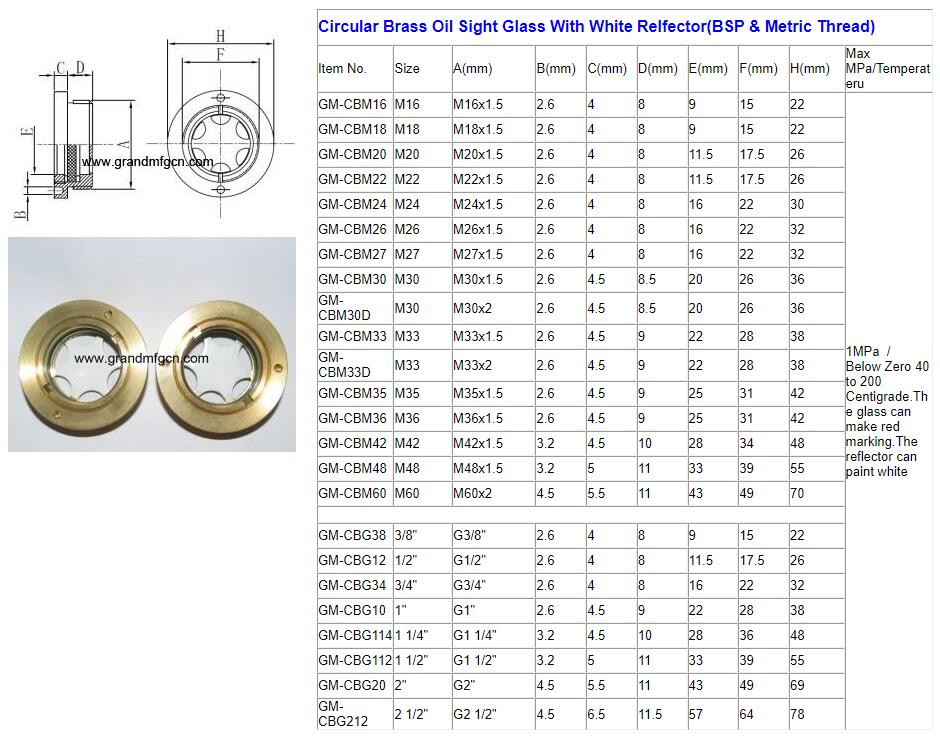

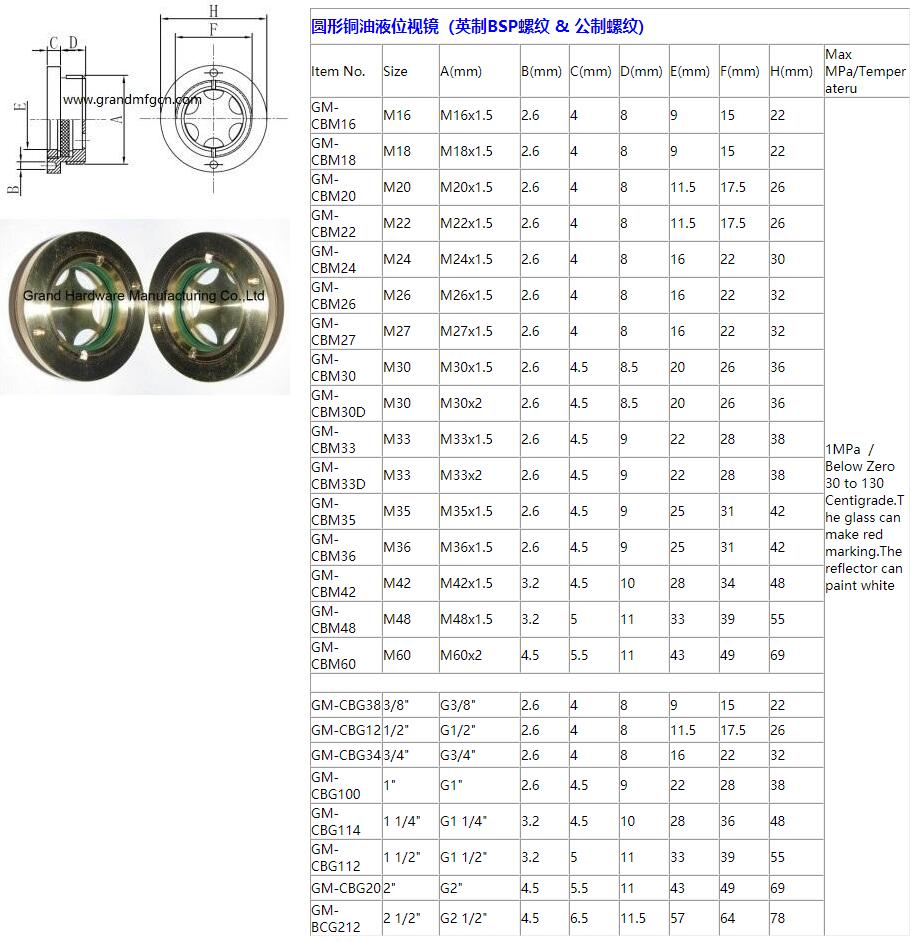

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage:  Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
