Aluminum oil sight glass plugs

Metric thread aluminum bullseye oil level sight glass gauge indicators Ölschaugläser M33X1.5 M27X1.5

Metric thread aluminum bullseye oil level sight glass gauge indicators Ölschaugläser M33X1.5 M27X1.5

aluminum oil level sight glass oil level gauge indicators supplier,
GRAND-MFG sight glass used for some quality equipments, industrial
machinery radiators aluminum sight glass, cooling system liquid sight
glass, speed reducers sight glass,air compressor sight glass,roots
blower sight glasses,coolant surge tank sight glass,refrigeration
sight glass.
INQUIRY

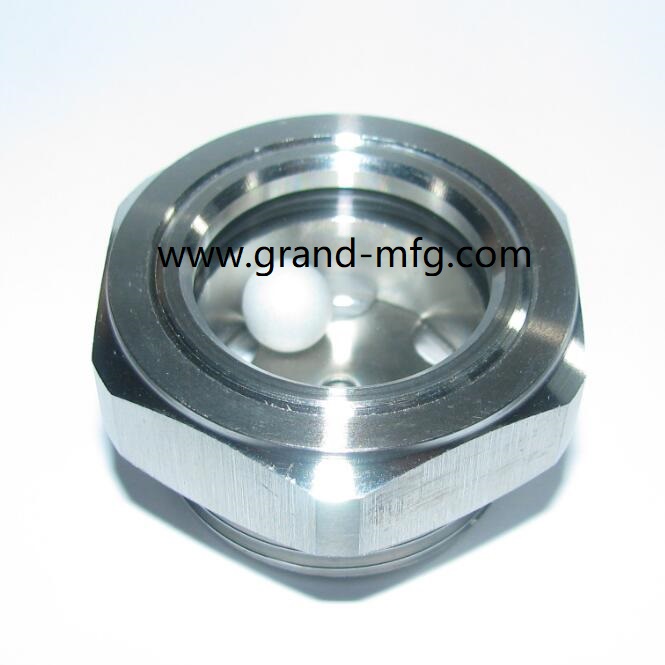

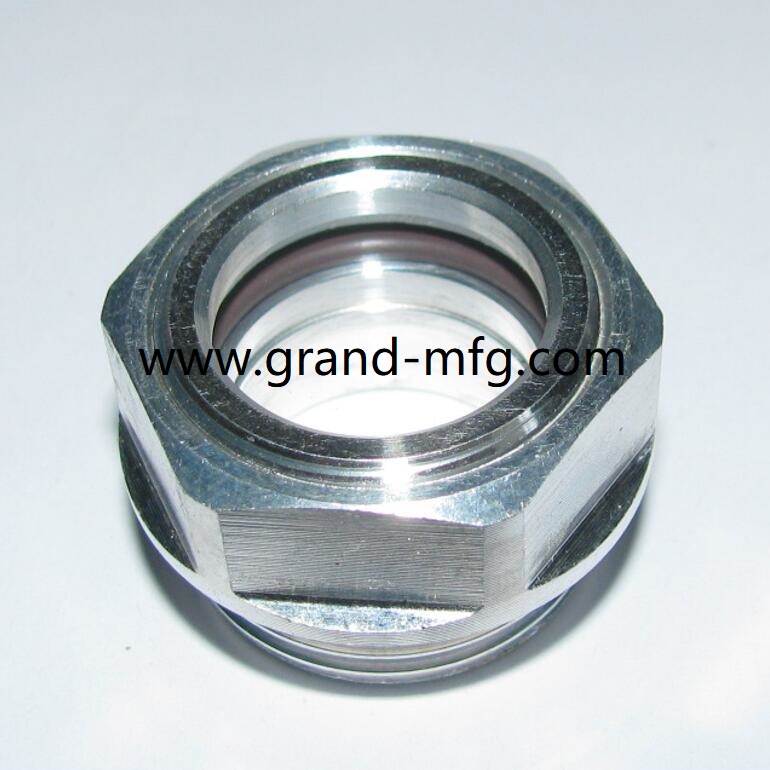

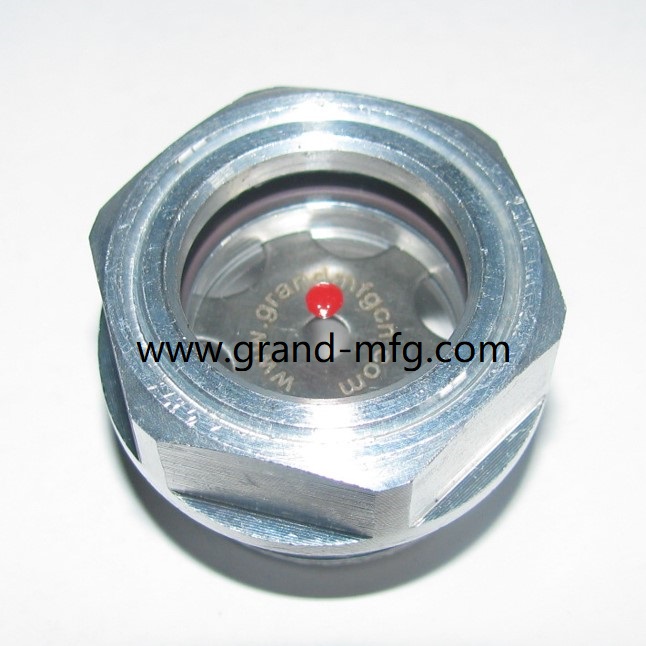

Aluminum Oil level sight glass Ölschaugläser

Material Body: Aluminum 6061 T6/Aluminum 6063

Finish: aluminum natural and aluminum oxidized color/ Anodizing color.

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

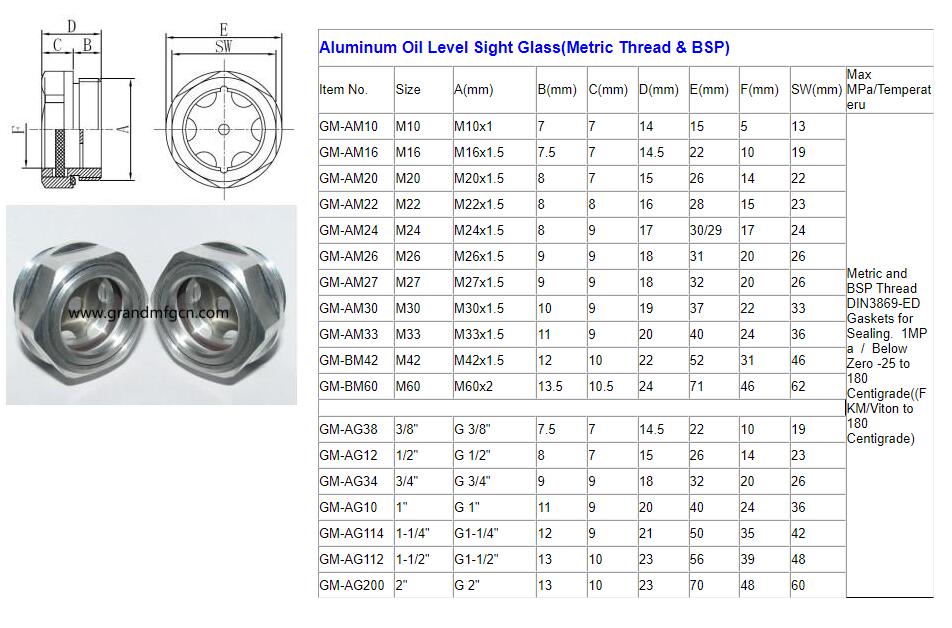

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

MILLED ALUMINUM SIGHT.jpg
