Aluminum oil sight glass plugs

Aluminum oil level sight glass oil level gauge indicators bullseye aluminum knob oil sight glass G thread

Aluminum oil level sight glass oil level gauge indicators bullseye aluminum knob oil sight glass G thread

heavy duty aluminum sight glass
speed reducer oil level gauge indicators
gear box oil levels bsp thread
INQUIRY

Aluminum Oil level sight glass

Material Body: Aluminum 6061 T6/Aluminum 6063

Finish: aluminum natural and aluminum oxidized color/ Anodizing color.

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

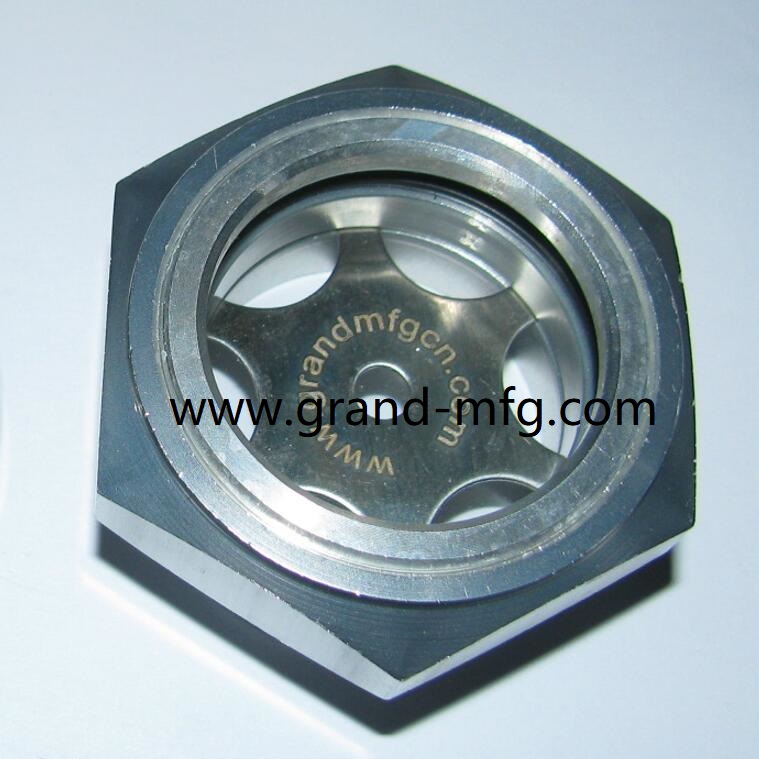

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

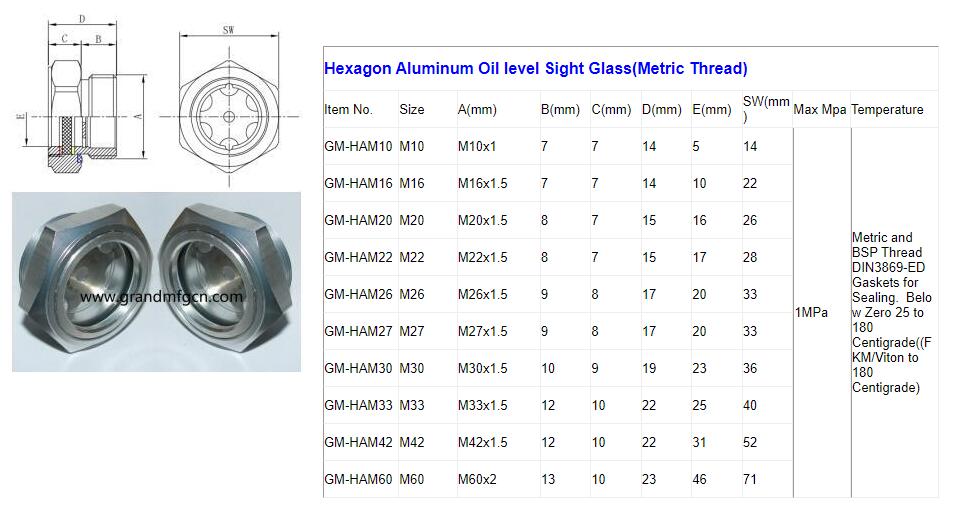

HEX METRIC ALUMINUM SIGHT.jpg
