Aluminum oil sight glass plugs

M22x1.5 Reducer aluminum oil sight glass oil gauge indicators BullsEye aluminum knob oil sight glass with milled head

M22x1.5 Reducer aluminum oil sight glass oil gauge indicators BullsEye aluminum knob oil sight glass with milled head

aluminum oil level sight glass oil level gauge indicators
INQUIRY

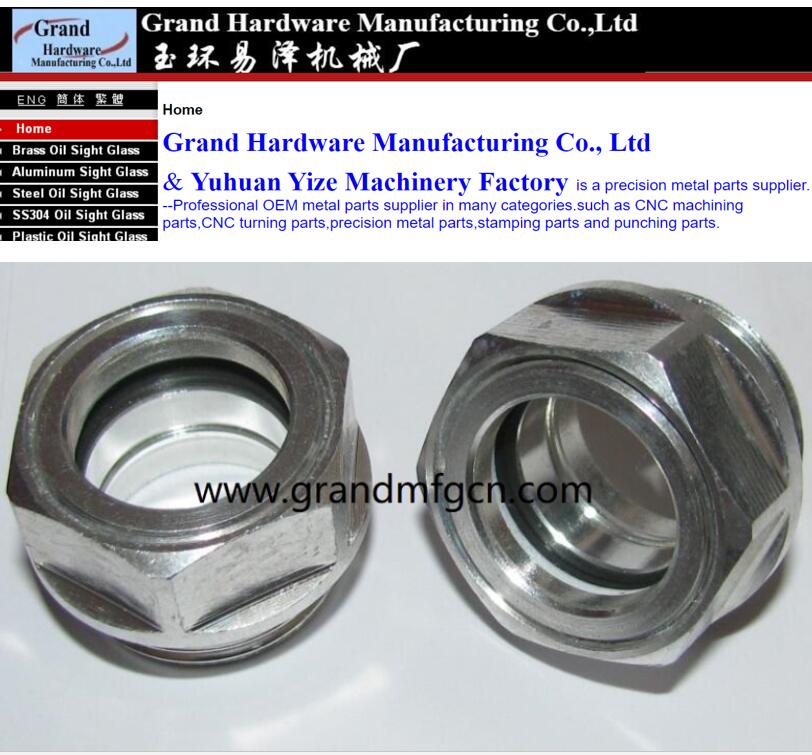

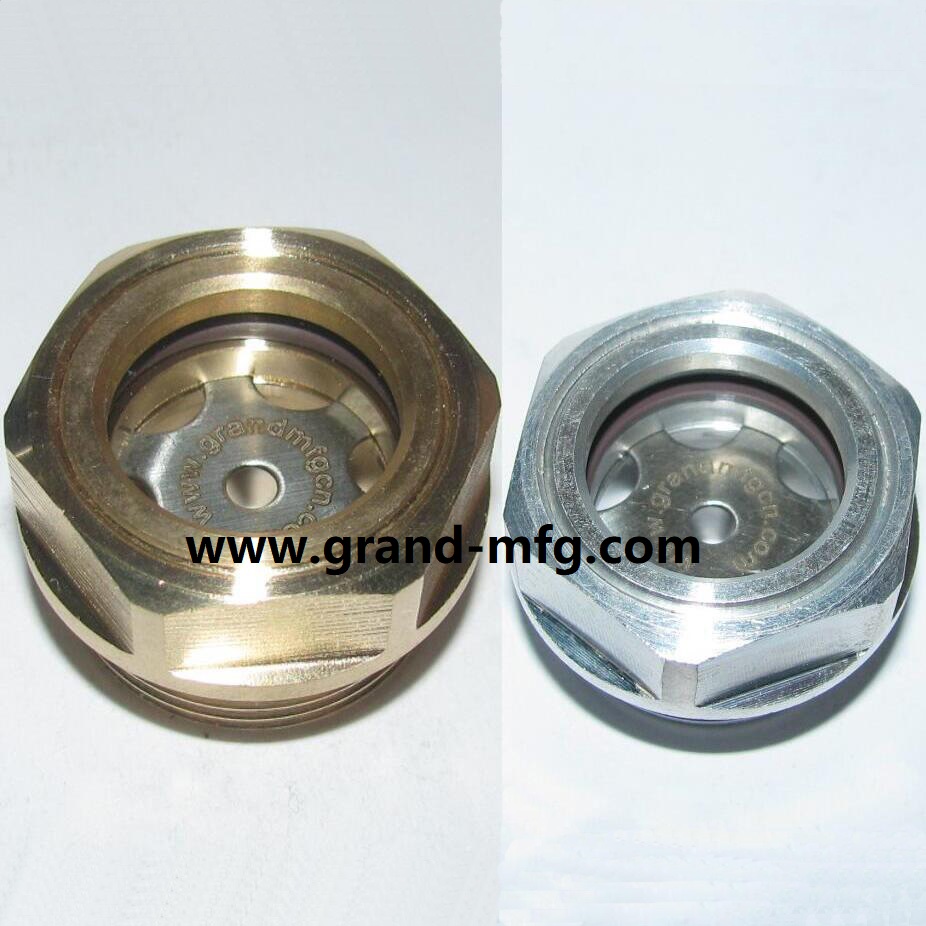

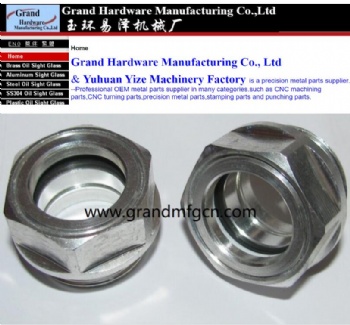

Aluminum Oil level sight glass

Material Body: Aluminum 6061 T6/Aluminum 6063

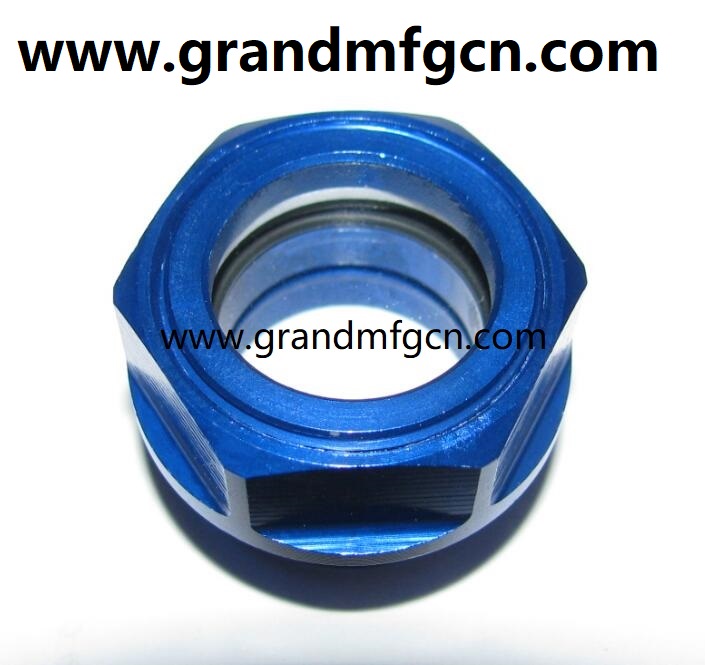

Finish: aluminum natural and aluminum oxidized color/ Anodizing color.

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

LINK TO: GO TO GRAND-MFG CATALOGUE

Any special requirements just contact us directly.
