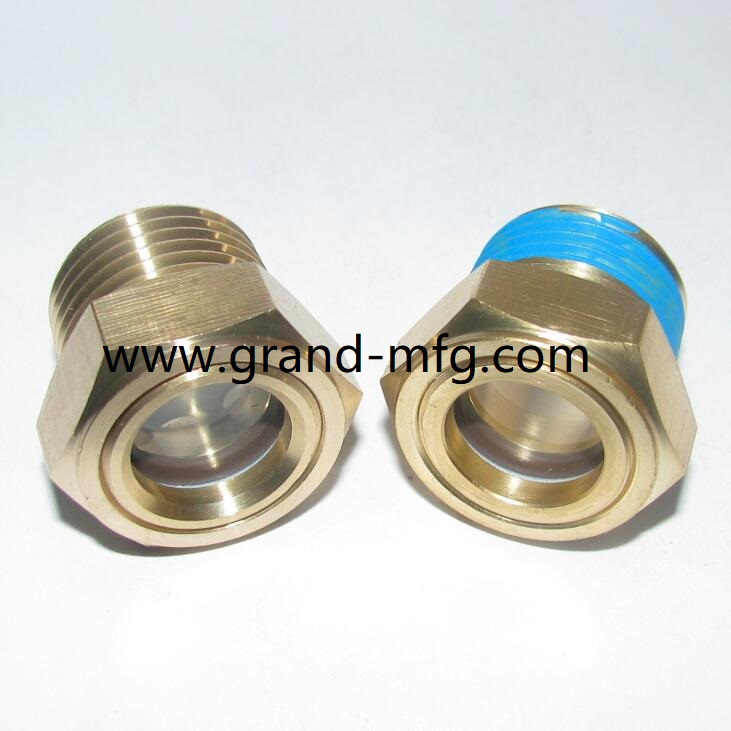

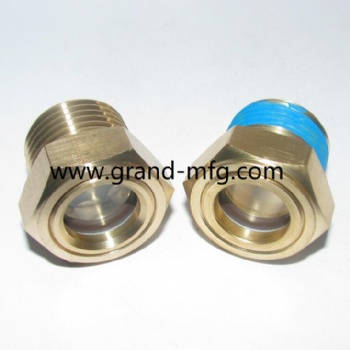

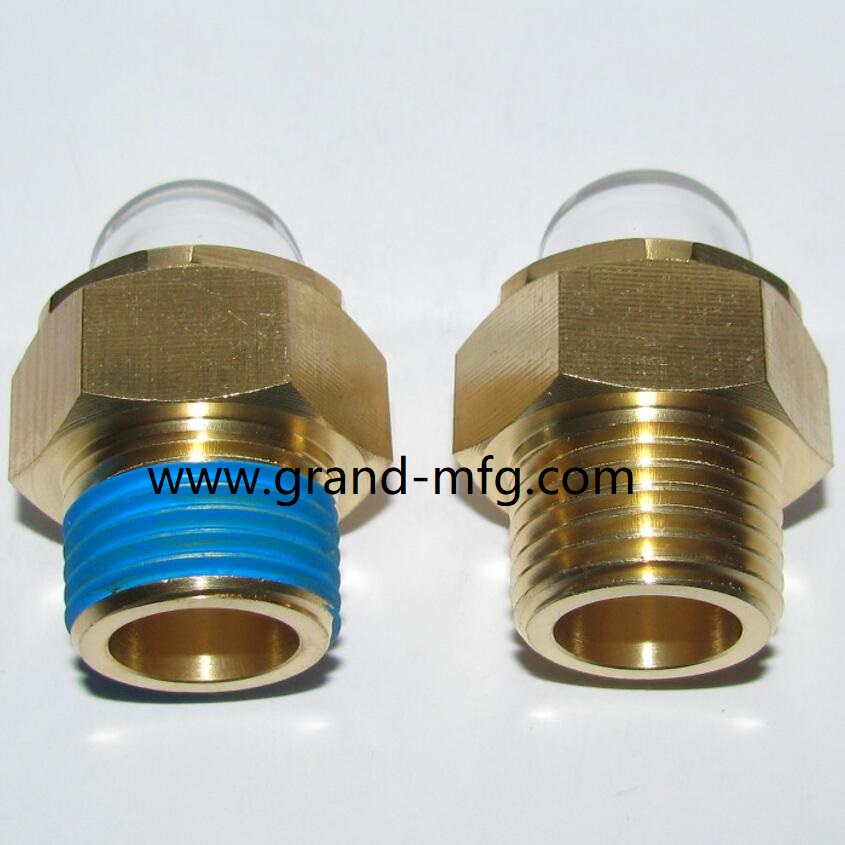

Brass oil level sight glass

Heavy duty G thread 1/2 brass oil level sight gauge oil indicators

Heavy duty G thread 1/2 brass oil level sight gauge oil indicators

Brass Oil level sight glass
Gearboxes Compressor and Power Transmission
Brass Material Various Glass Types Multiple Sizes
Aluminum Oil Level Sight Glass Versatile and
Resistant to High Temperatures and Pressure
Custom Sizes and Materials Available
INQUIRY

Brass Oil level sight glass

Material Body: Brass

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

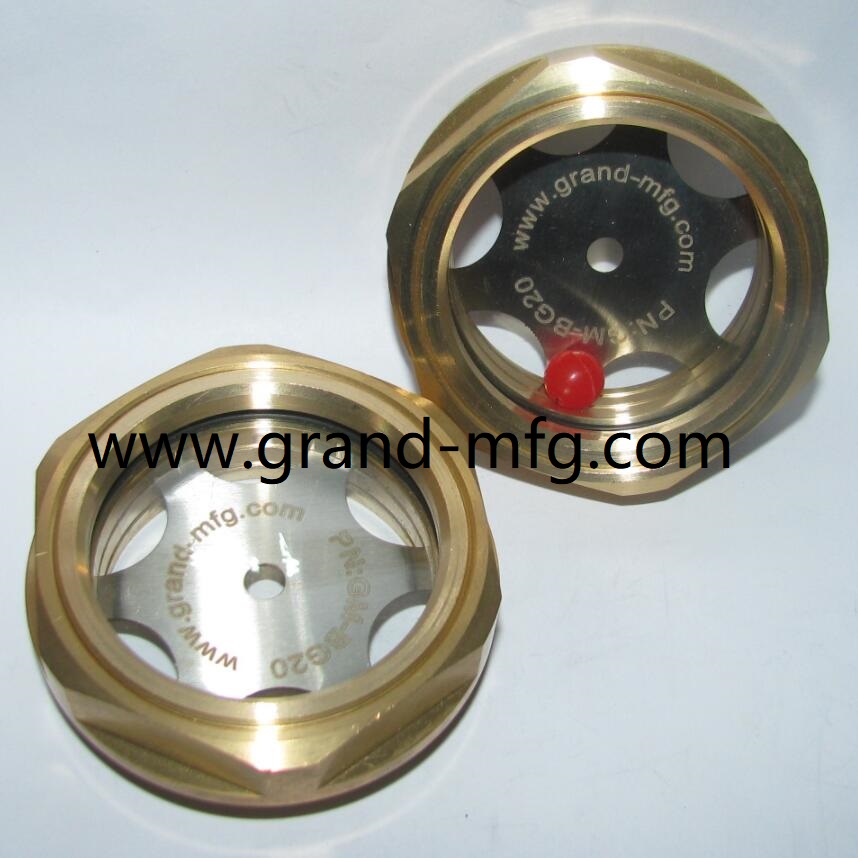

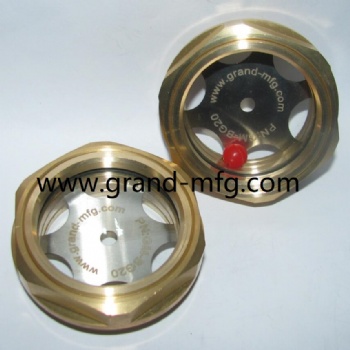

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
