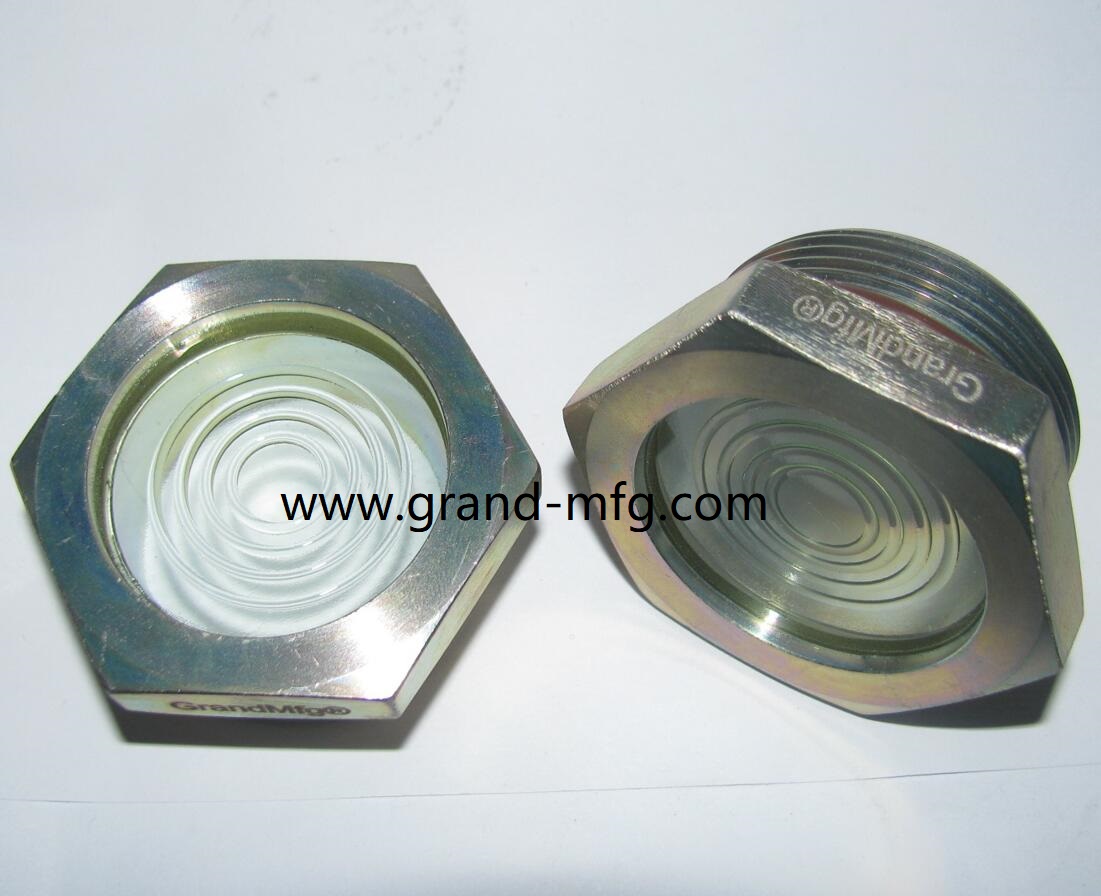

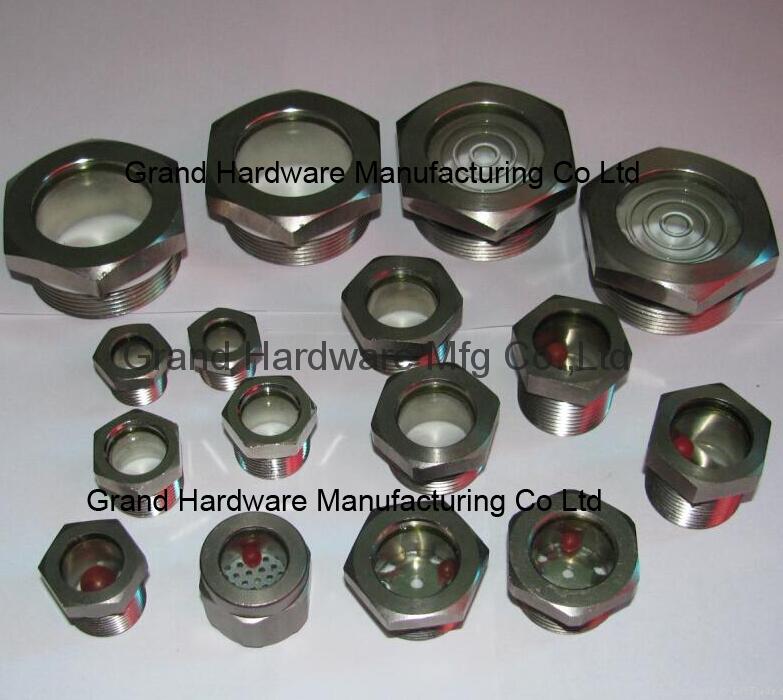

Steel fused Sight Glass Plated

Steel Fused Oil Sight glass plugs(Metric Thread)

GrandMfg® Threaded Fused Window Sights,Fused Sight Glass,Fused level sight gauge,Fused Sight windows,Metal Sight Glass

Specifications:

Service: Compatible gases and liquids.

Window: nature glass (3mm to 6mm)

Body: Nickel Plated steet,stainless steel 304 and S.S 316

Reflector: S.S 304 Customers can chosed Plastic float Ball for oil or other liquid.

Temperature: -30'C to 260 'C (500 ‘F).

Max Pressure: 12 MPa(1740Psi)

Connections: NPT,NPTF,UNC,UNF,Metric and BSP (G thread)

Size: 1/4" to 2"

Usage: refrigeration machine, compressor,Hydraulic reservoir,Power Transimission and various machine.

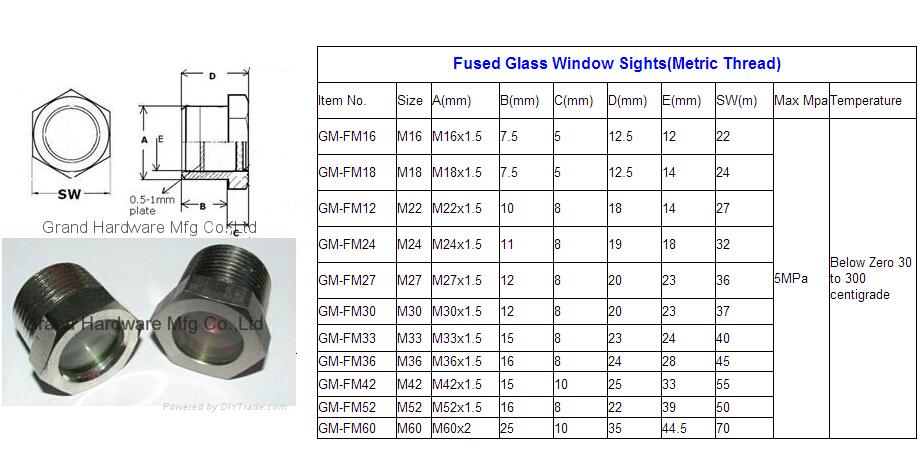

Fused Glass Window Sights(Metric Thread).jpg

LINK TO: GO TO GRAND-MFG CATALOGUE
