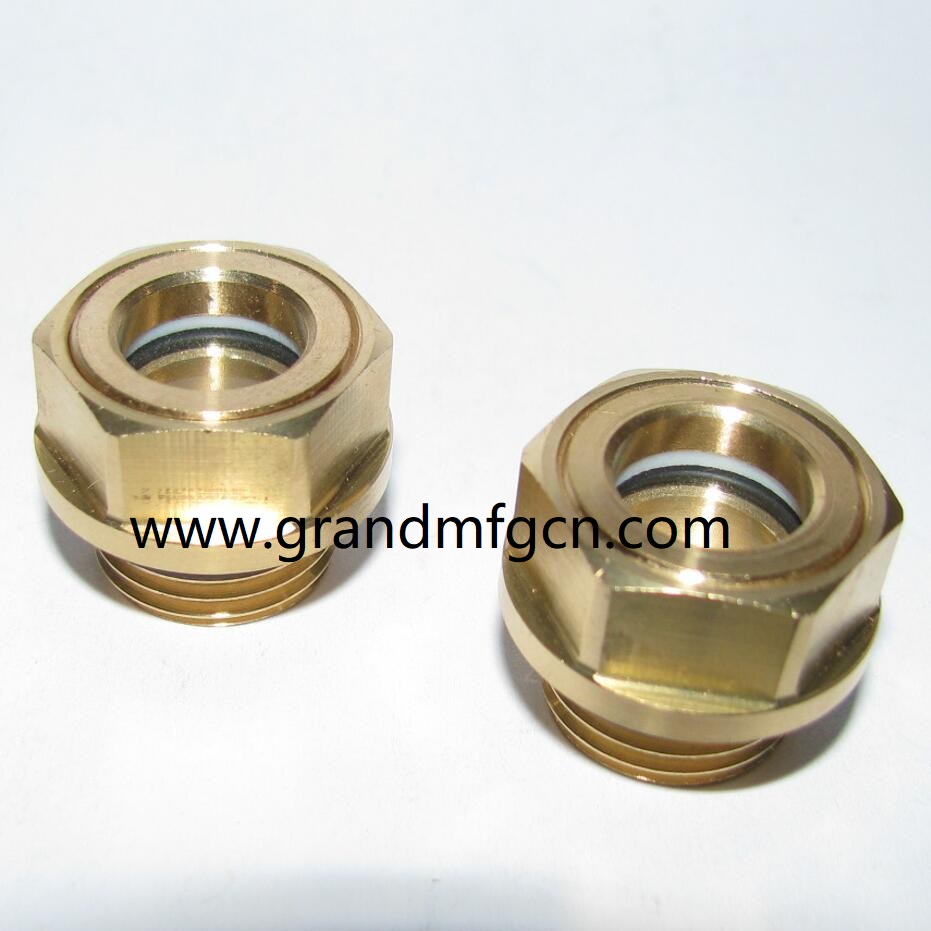

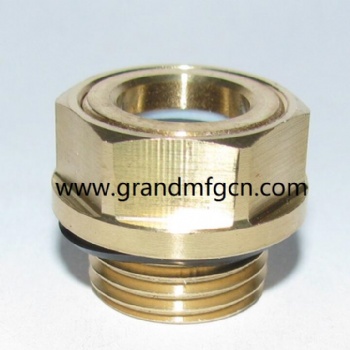

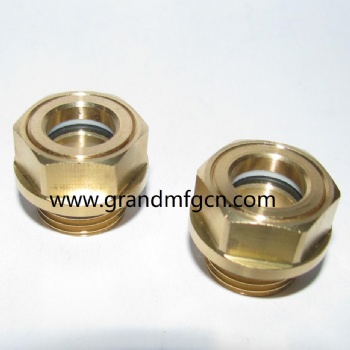

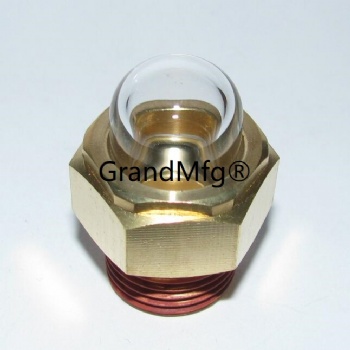

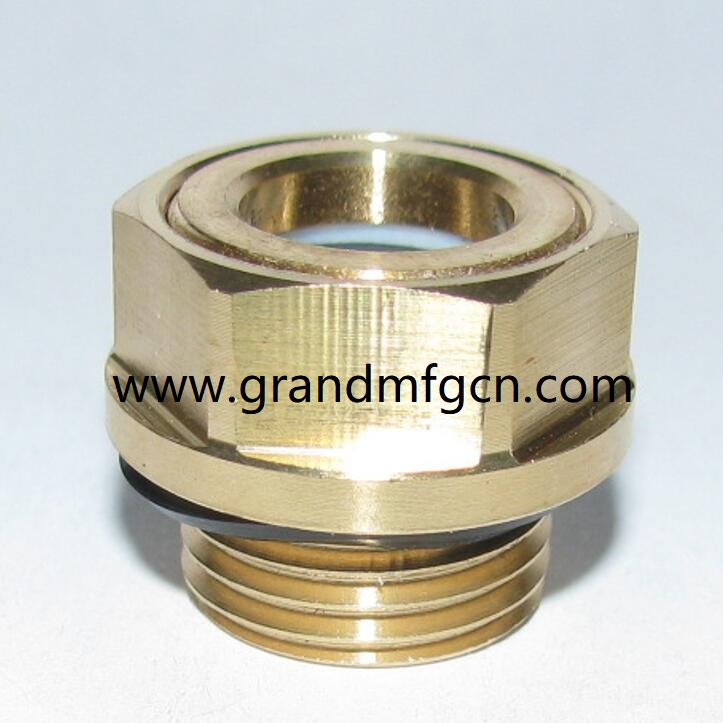

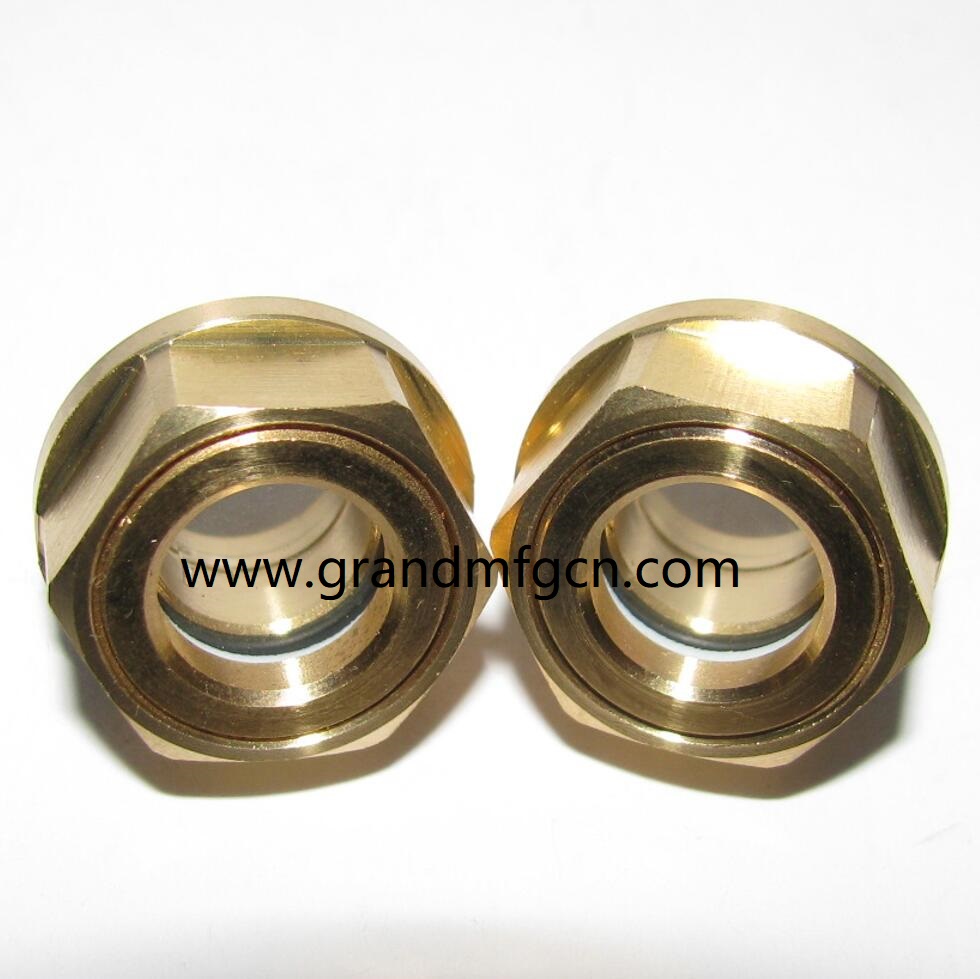

Brass oil level sight glass

M12X1.5 SPEED REDUCERS BRASS OIL SIGHT GLASS OIL INDICATOR BRASS BUBBLE OIL SIGHT GLASS

M12X1.5 SPEED REDUCERS BRASS OIL SIGHT GLASS OIL INDICATOR BRASS BUBBLE OIL SIGHT GLASS

Brass Oil level sight glass
Brass Oil Sight Glass for Pump Gearboxes and Compressors
Brass Oil Sight Glass Material and Design Perfect for Oil
Receivers and Power Transmission NPT NPTF and BSP
Thread Options
INQUIRY

Brass Oil level sight glass

Material Body: Brass

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

LINK TO: GO TO GRAND-MFG CATALOGUE

Any special requirements just contact us directly.
