Stainless steel oil sight glass

Pressure vessel containers Stainless Steel Fluid Sight Glass

ASEM air speparator Stainless Steel Oil level Sight Glass NPT1/4"
Material Body: Stainless steel 304,Stainless steel 304L,
Stainless Steel 316,Stainless steel 316L
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 220'C
Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size： Below you will get the size you wanted.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,
Compressor and Power Transimission.
INQUIRY

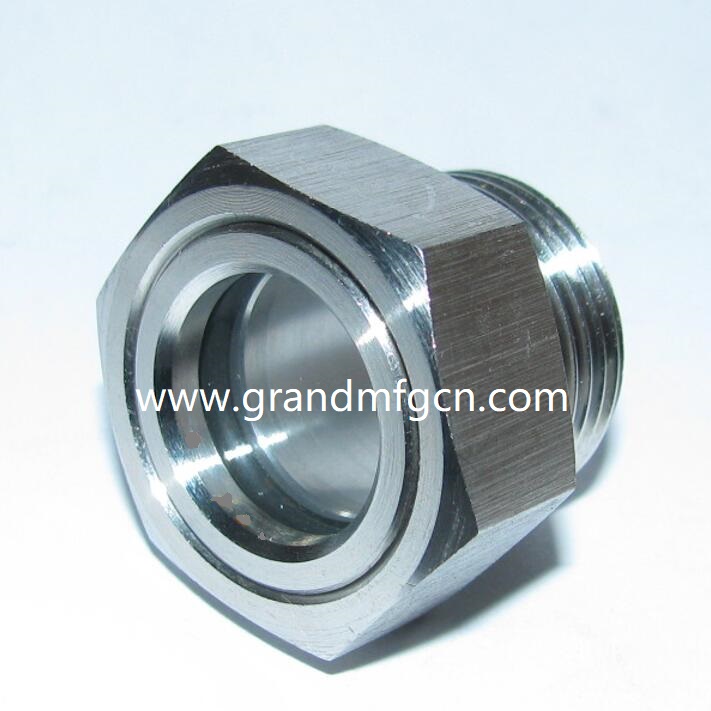

Stainless Steel 304 Oil level sight glass(NPT Thread)

Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 220'C

Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

LINK TO: GO TO GRAND-MFG CATALOGUE

Any special requirements just contact us directly.Thank you!
