Aluminum oil sight glass plugs

aluminum coolant expansion tank sight glass plug BSP G1/2 INCH

aluminum coolant expansion tank sight glass plug BSP G1/2 INCH

Brass Oil level sight glass
Pump,Oil Receivers,Gearboxes,Speed Reducer,
Compressor and Power Transimission
ALUMINUM OIL LEVEL SIGHT GLASSES
OIL LEVEL GAUGE
HEAT EXCHANGER RADIATOR SIGHT GLASS GAUGE
LIQUID LEVEL INDICATORS
INQUIRY

Liquid sight glass

Material Body: Brass/aluminum/stainless steel/plated steel

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

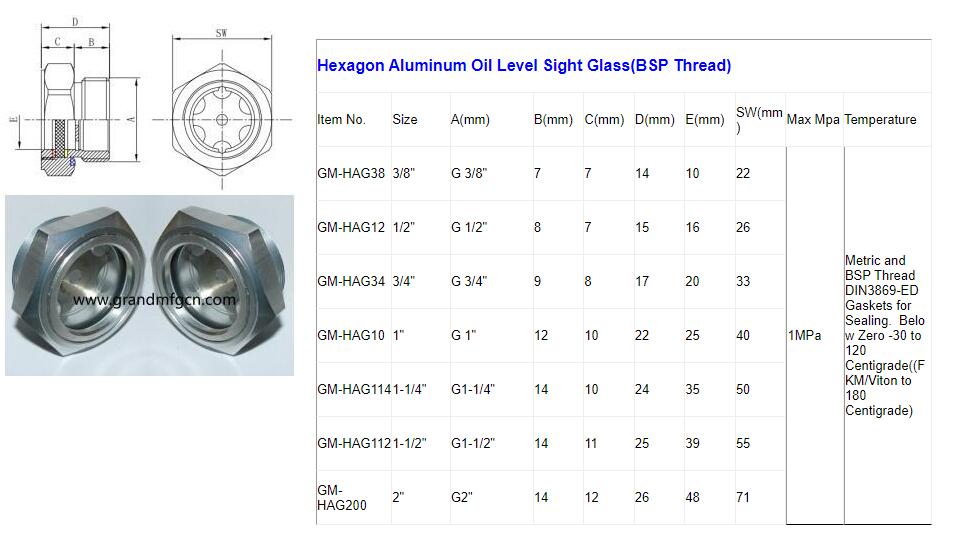

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

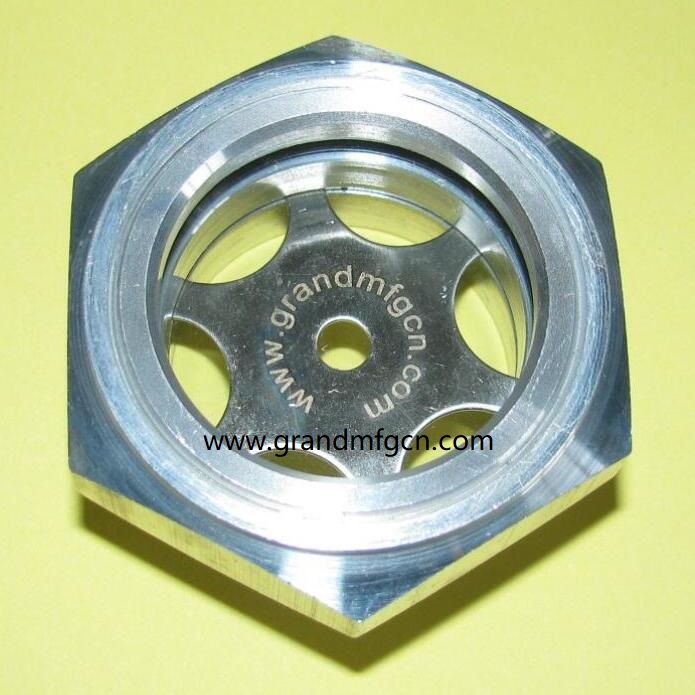

MILLED ALUMINUM SIGHT.jpg
