Brass oil level sight glass

BSP Brass Sight Glass Gauge plug oil Air Bubbles in Overflow Tank

Brass Oil level sight glass
Pump,Oil Receivers,Gearboxes,Speed Reducer,
Compressor and Power Transimission liquid oil level sight glass
surge tank liquid sight gauge air bubbles sight glass
INQUIRY

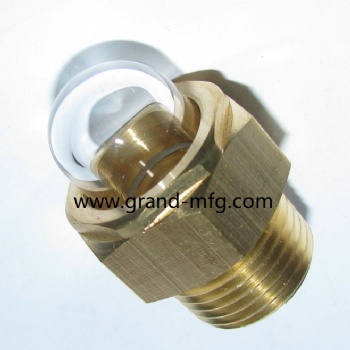

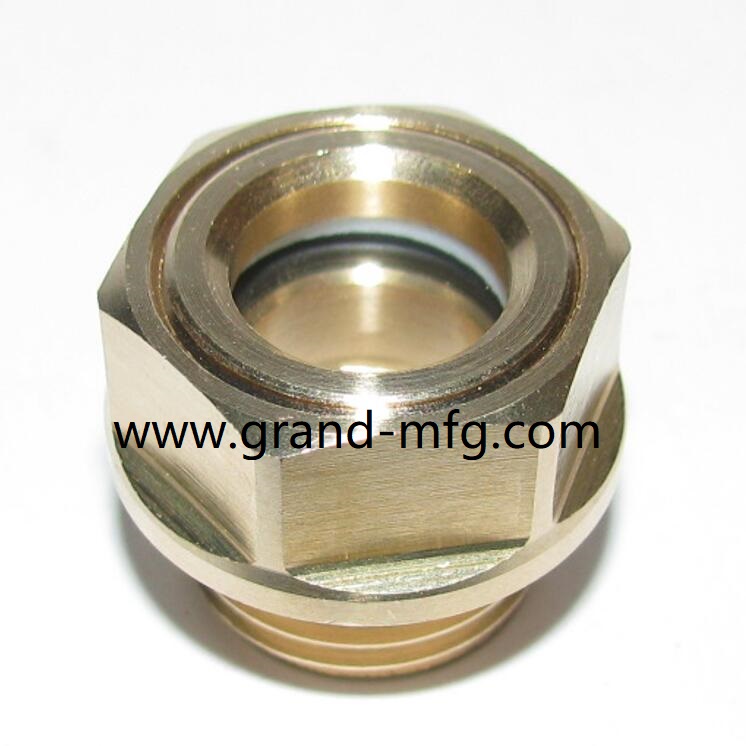

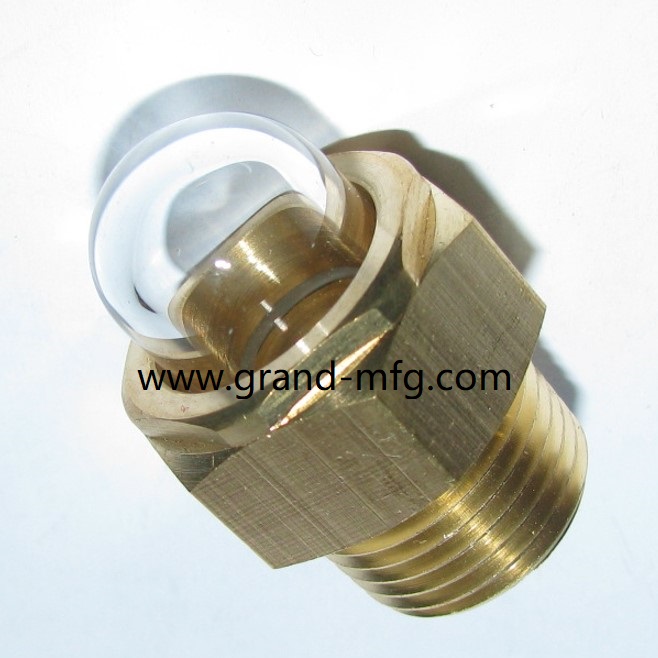

Brass Oil level sight glass

Brass sight glass liquid level checks

used for machinery radiator liquid level viewport, pumps oil level checks,custom available.

Material Body: Brass

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
