Brass oil level sight glass

Industrial Gearbox Reducer Gear Motor M20x1.5 Brasss Oil Sight Glass Gauge Window Indicator

Industrial Gearbox Reducer Gear Motor M20x1.5 Brasss Oil Sight Glass Gauge Window Indicator

Brass Oil level sight glass
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
INQUIRY

Brass Oil level sight glass

Material Body: Brass

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

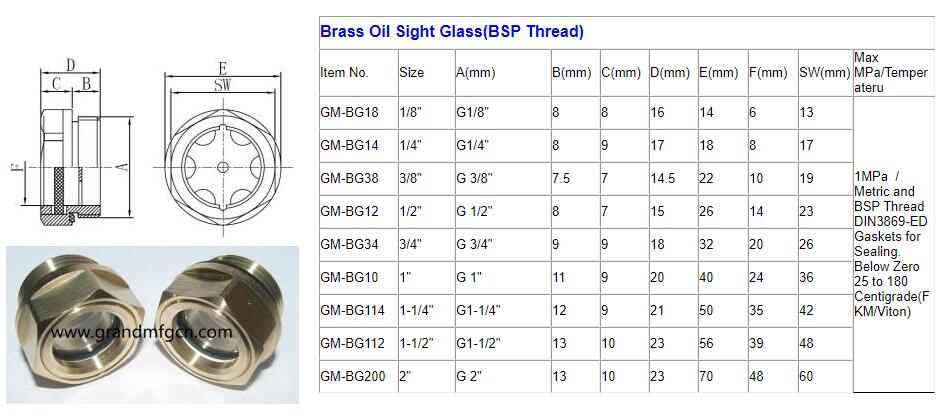

Brass Oil Sight Glass(BSP Thread).jpg
