Carbon Steel oil level sight glass

Industrial Pump NPT Zinc Plated Oil Sight Glass Viewport Indicator Custom Available

Industrial Pump NPT Zinc Plated Oil Sight Glass Viewport Indicator Custom Available

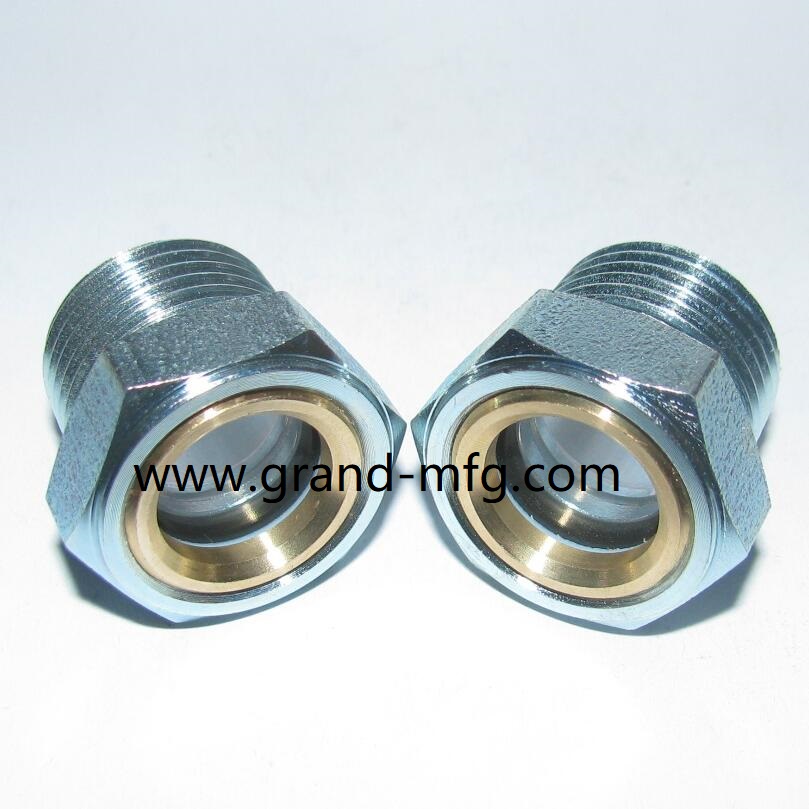

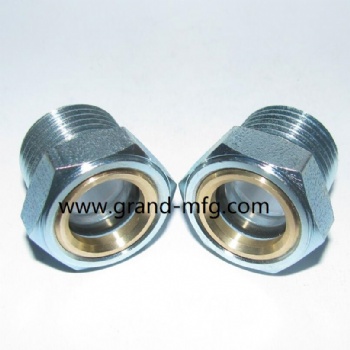

Steel Oil level sight glass Zinc Plated
Material Body: Steel Plated
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 8 mm
Reflectors: Stainless Steel 304 Reflector
INQUIRY

Steel Oil level sight glass Zinc Plated

used for pumps,roots blowers,power transmission,hydraulic oil tank,gear boxes.

Material Body: Steel Plated(Zinc plated,Nickel plated and chrome plated)

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 8 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

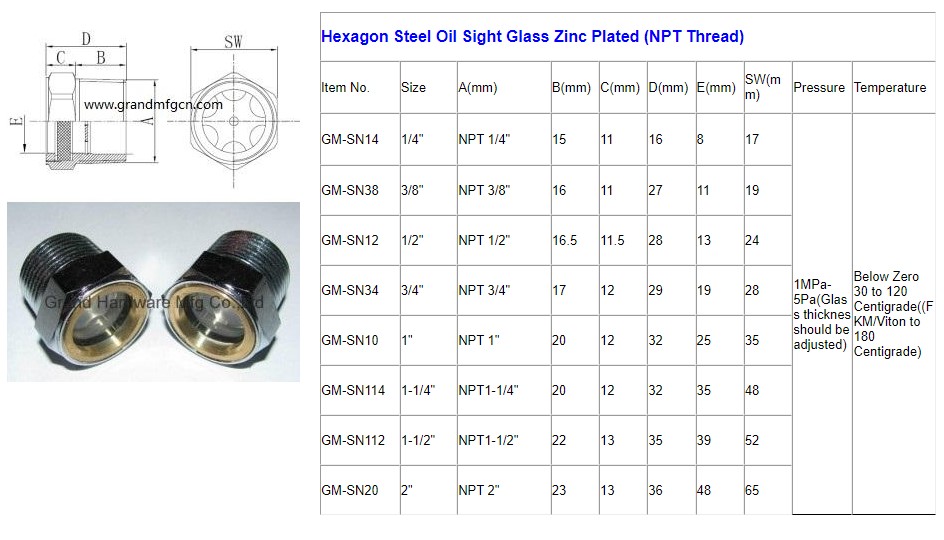

NPT STEEL SIGHTGLASS.JPG
