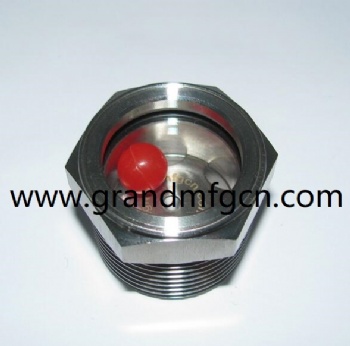

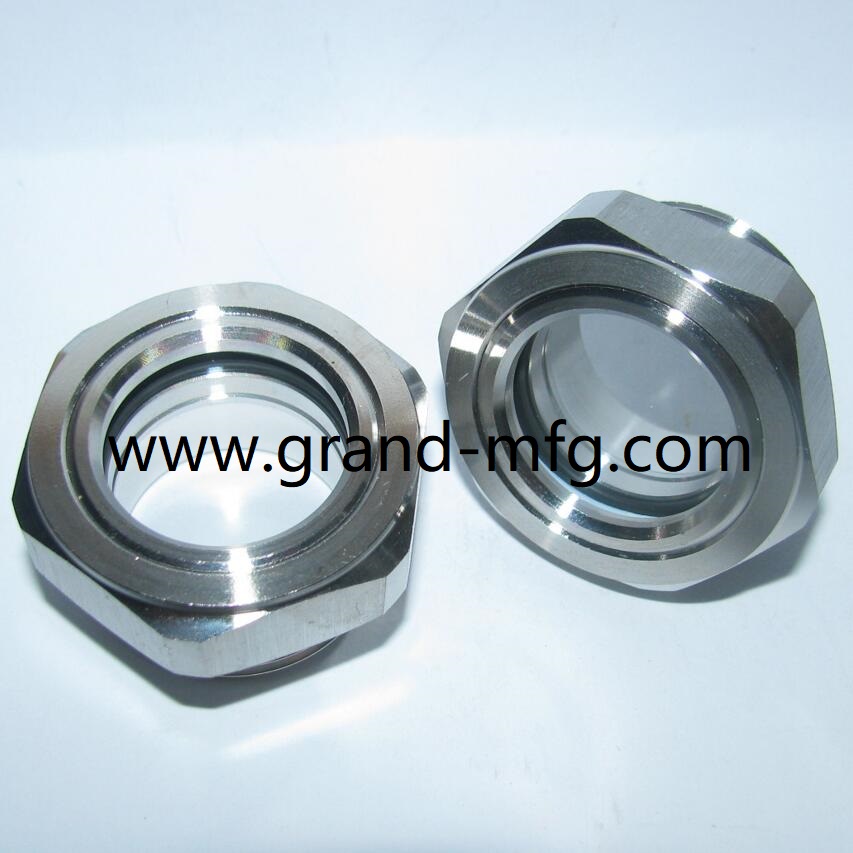

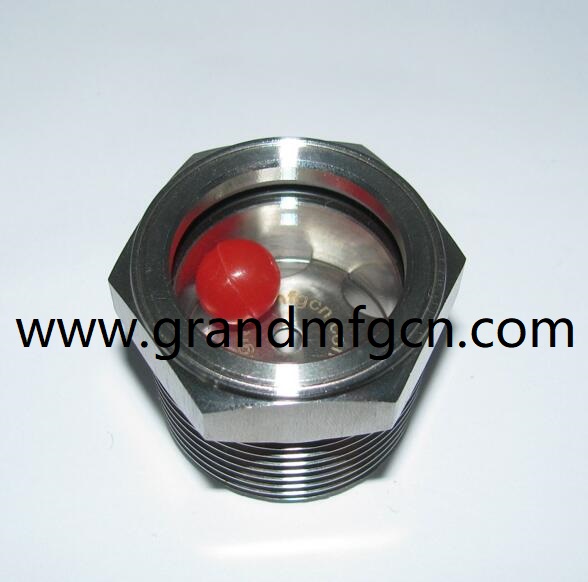

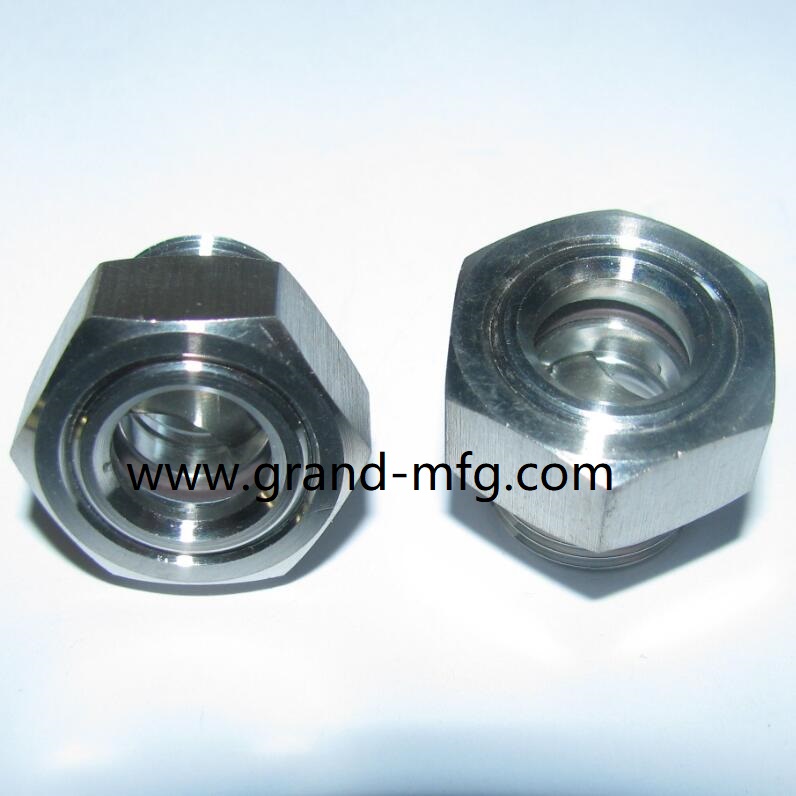

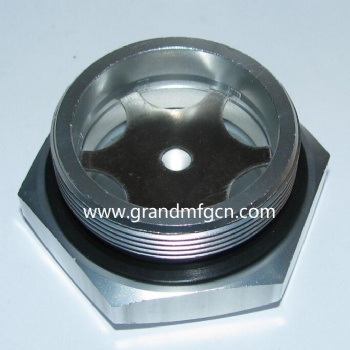

Stainless steel oil sight glass

Machinnical Metering pump Stainless Steel Liquid oil level Sight Glass Gauge window plug

Machinnical Metering pump Stainless Steel Liquid oil level Sight Glass Gauge window plug

Machinnical Metering pump Stainless Steel Liquid oil level Sight Glass Gauge window plug
3/4“ 1" 2" 1/2" 3/8"
Pump Oil Sightglass,Oil Receivers Sightglass Gauge,
Gearboxes Oil Sight Gauge,Speed Reducer Oil Sight Glass Plug,
Compressor and Power Transimission Oil Sight Glass.
INQUIRY

Machanical Metering pump Stainless Steel 304 Oil level sight glass Metric thread,BSP Thread and NPT Thread

Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 220'C

Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. ss bsp liquid sight glass.JPG
