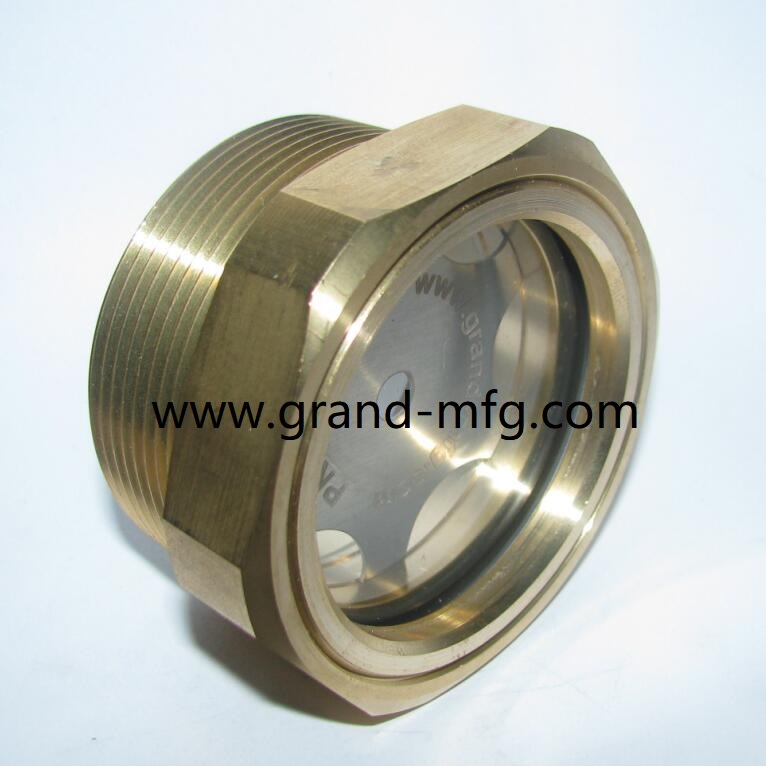

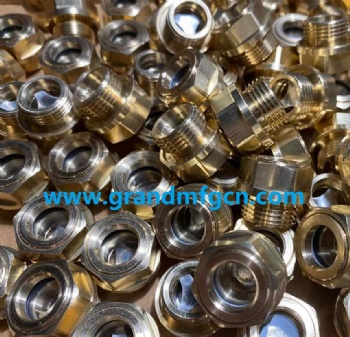

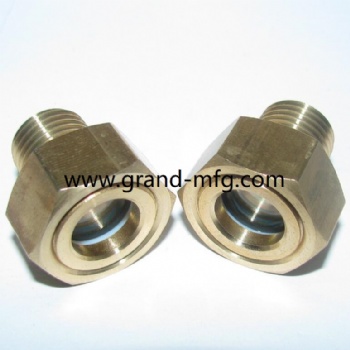

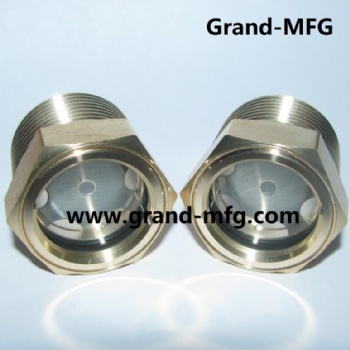

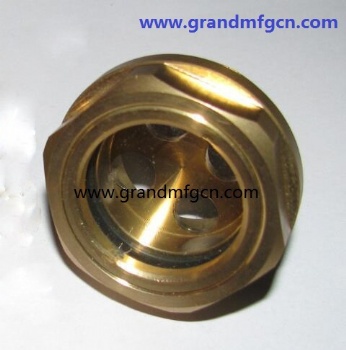

Oil level sight glass
Material Body: Brass/aluminum/stainless steel
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm

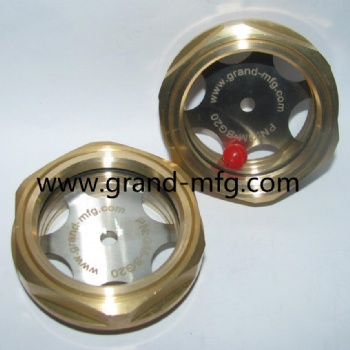

Reflectors: Stainless Steel 304 Reflector

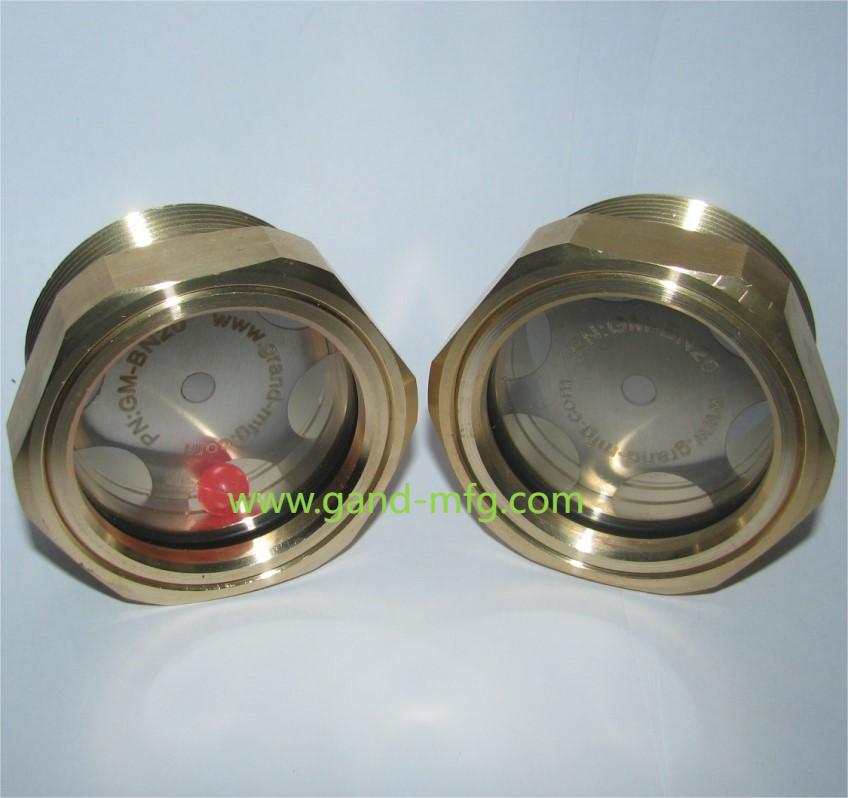

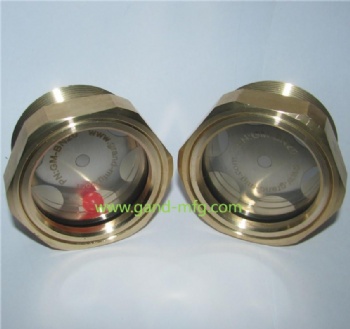

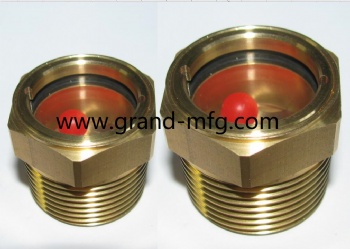

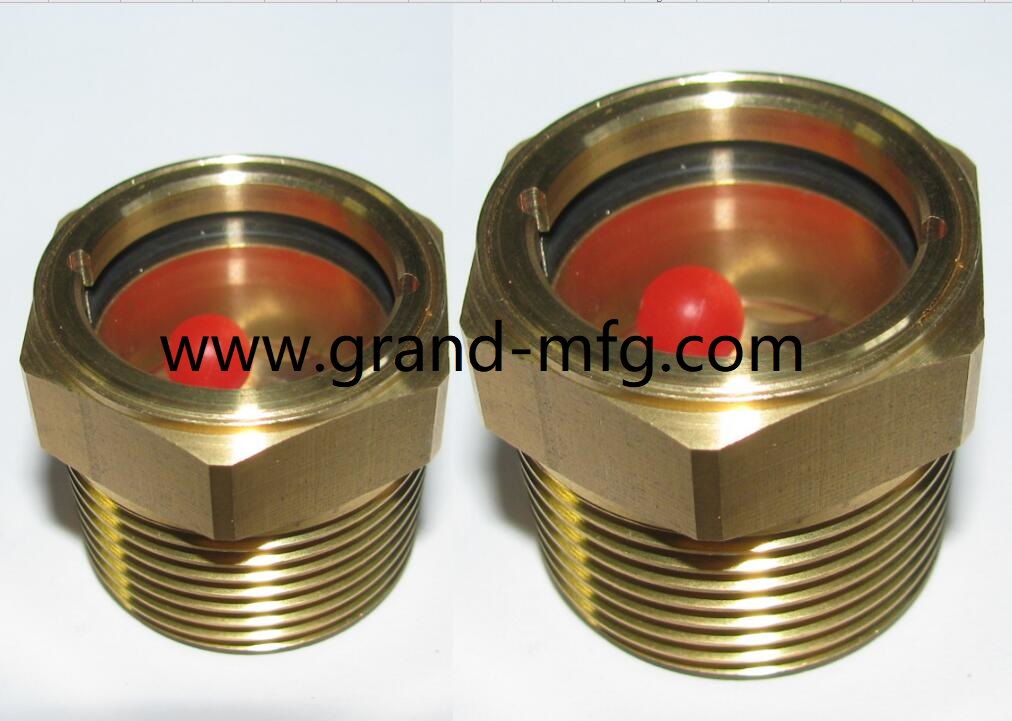

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

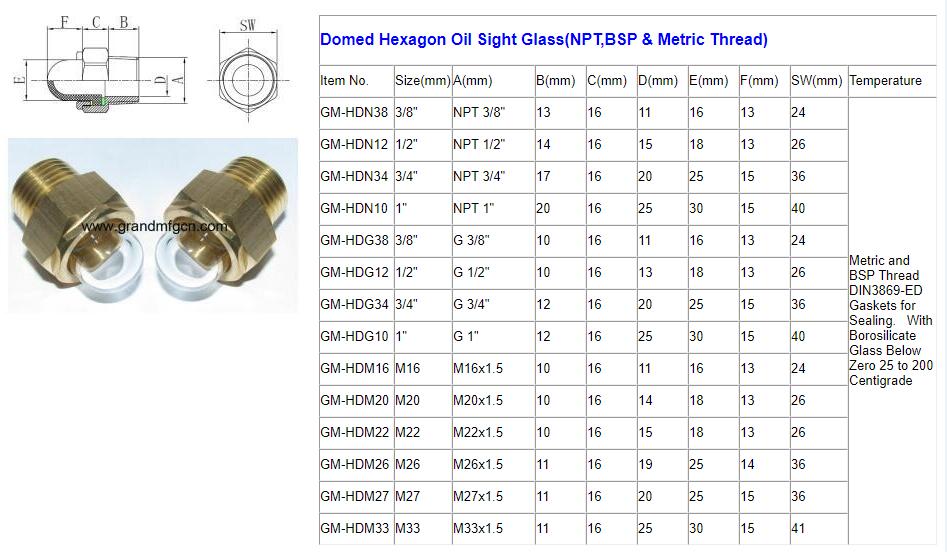

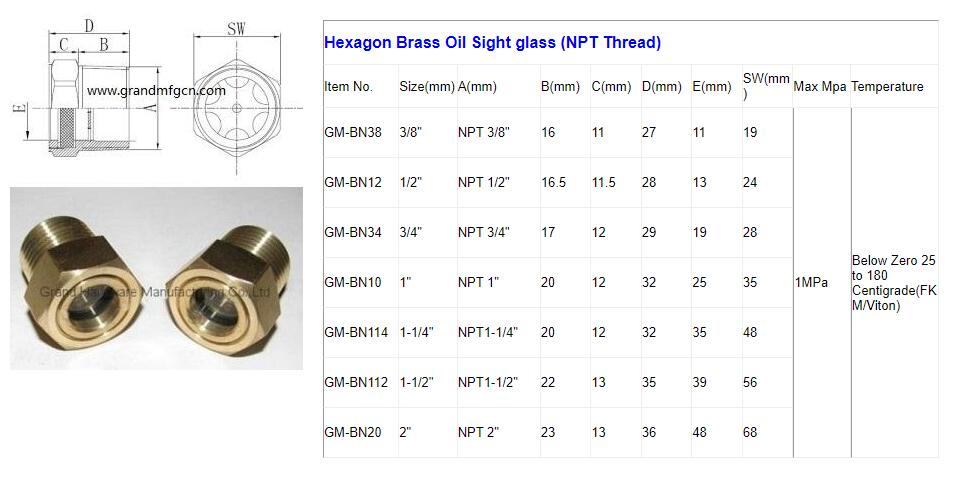

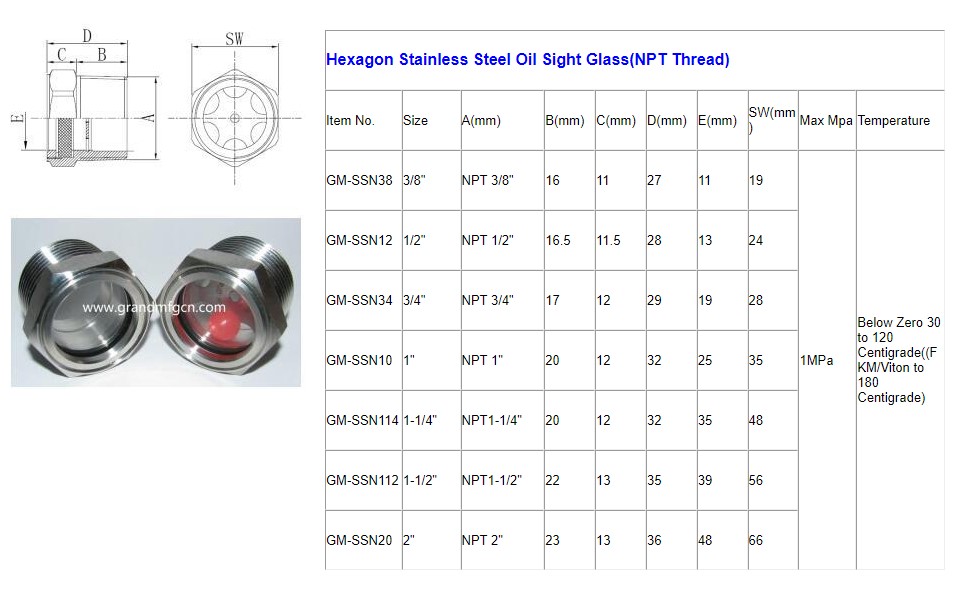

STAINLESS STEEL SIGHT GLASS SIZES CATALOGUE BELOW:
LINK TO: GO TO GRAND-MFG CATALOGUE
Any special requirements just feel free to let us know.
