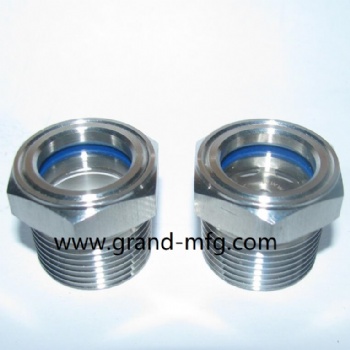

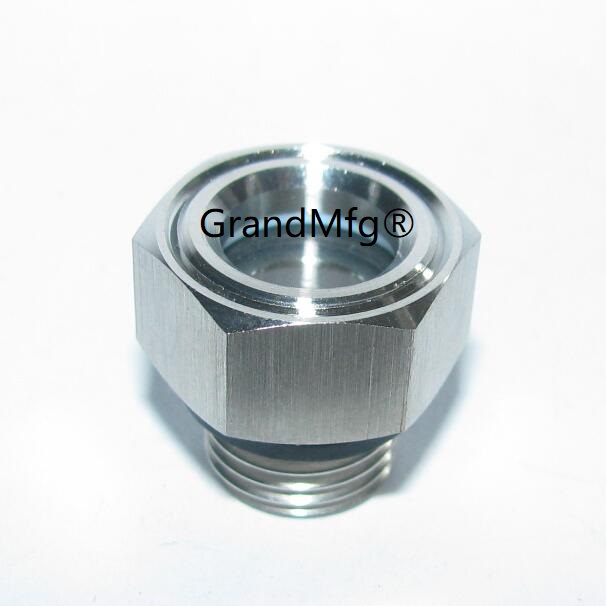

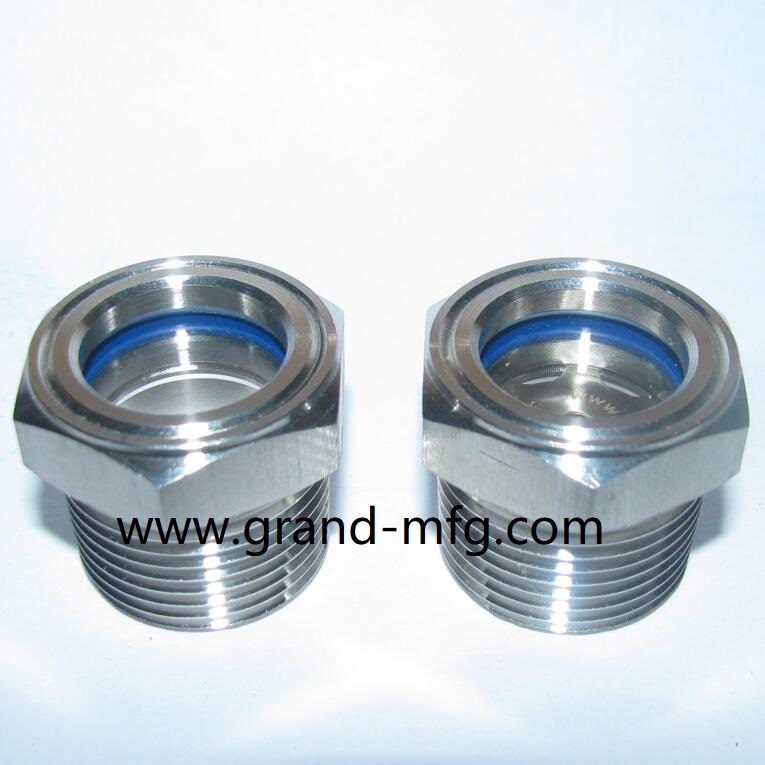

Stainless steel oil sight glass

NPT1 1/4 stainless steel liquid level sight glass for compressor pump

NPT1 1/4 stainless steel liquid level sight glass for compressor pump

Material Body: Stainless steel 304,
Stainless Steel 316,Stainless steel 316L
O-Ring: Viton,FKM,NBR, Aramid gasket，
Silicone Rubber,and Copper seal
Reflectors: Stainless Steel 304 Reflector
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 220'C
Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).
INQUIRY

Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,FKM,NBR, Aramid gasket，Silicone Rubber,and Copper seal

Glass Thickness: 2mm to 5 mm

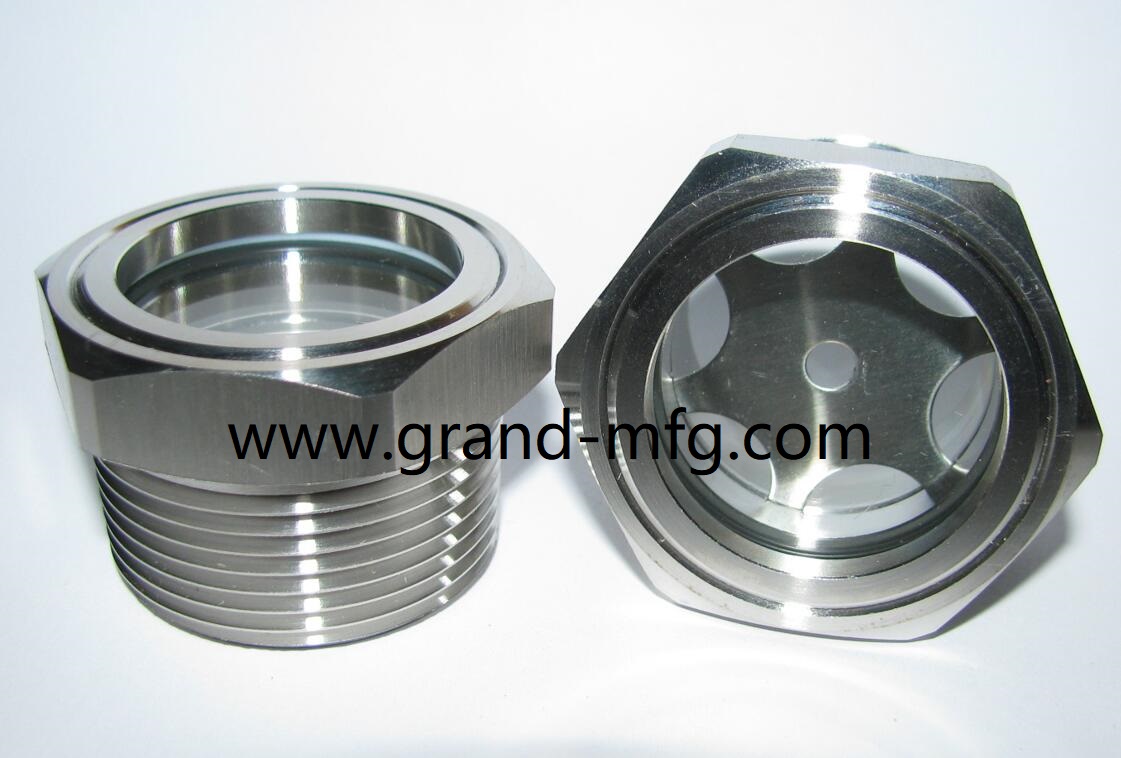

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 220'C

Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
