Aluminum oil sight glass plugs

BSP thread aluminum oil level sighting glass oil level gauge indicators BullsEye BRASS SIGHT GLASS WITH SUPER CLEAR GLASS G1/2 G3/4 G1 G1 1/4

BSP thread aluminum oil level sighting glass oil level gauge indicators BullsEye BRASS SIGHT GLASS WITH SUPER CLEAR GLASS G1/2 G3/4 G1 G1 1/4

G1/2" 3/4" 1" 1 1/4" aluminum oil level sight glass
oil level gauge indicators
INQUIRY

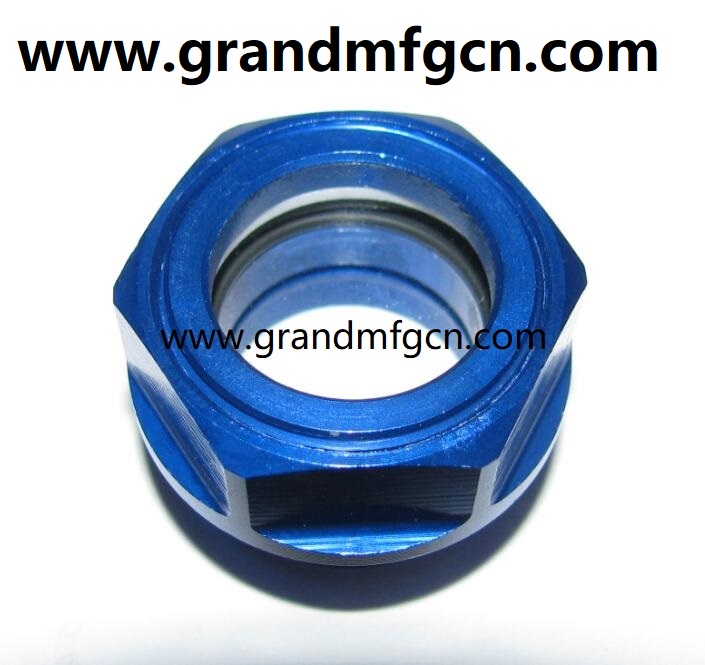

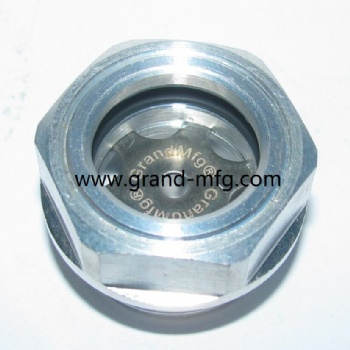

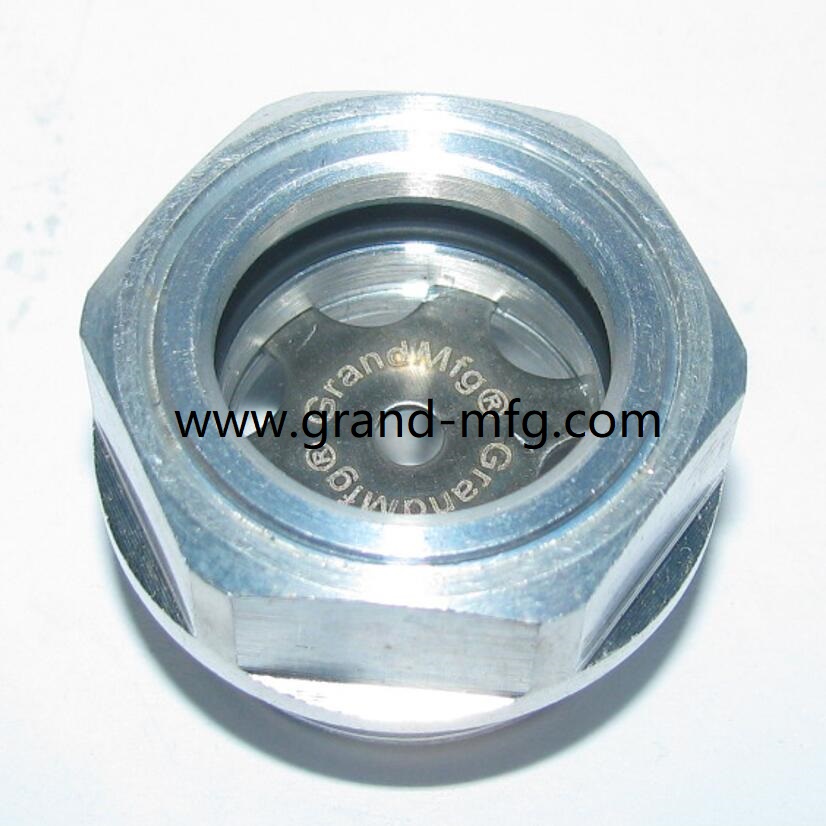

Aluminum Oil level sight glass

Material Body: Aluminum 6061 T6/Aluminum 6063

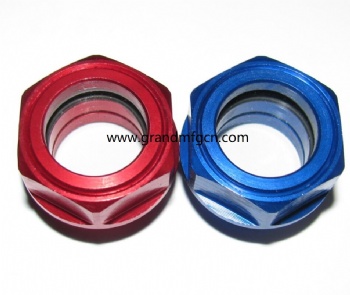

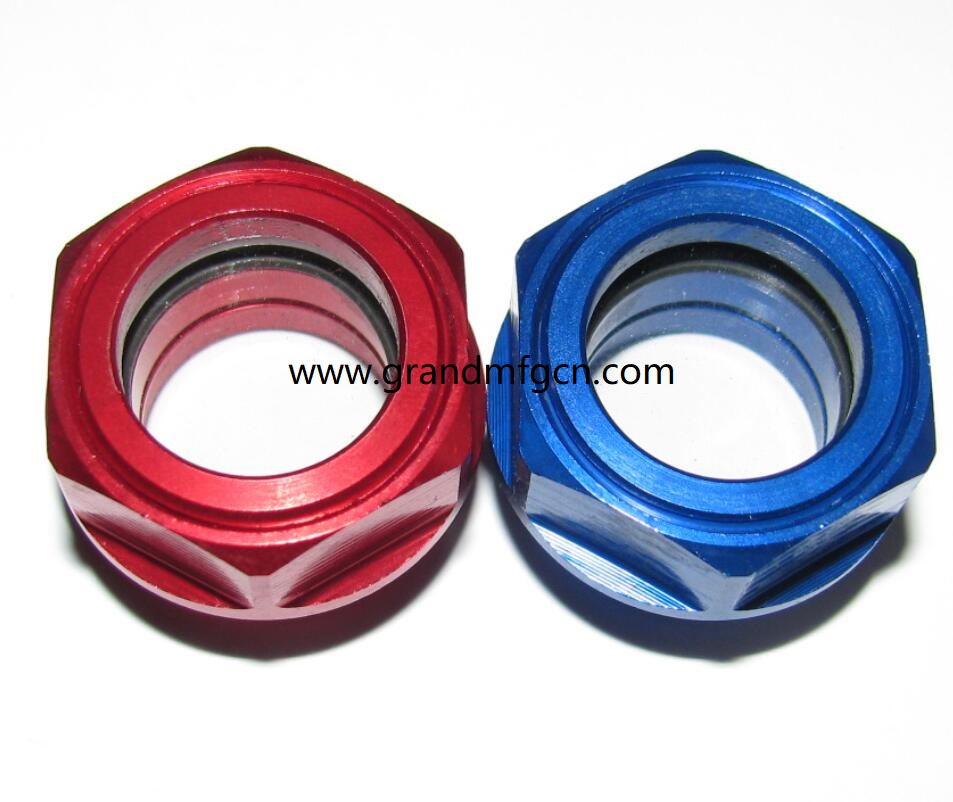

Finish: aluminum natural and aluminum oxidized color/ Anodizing color.

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

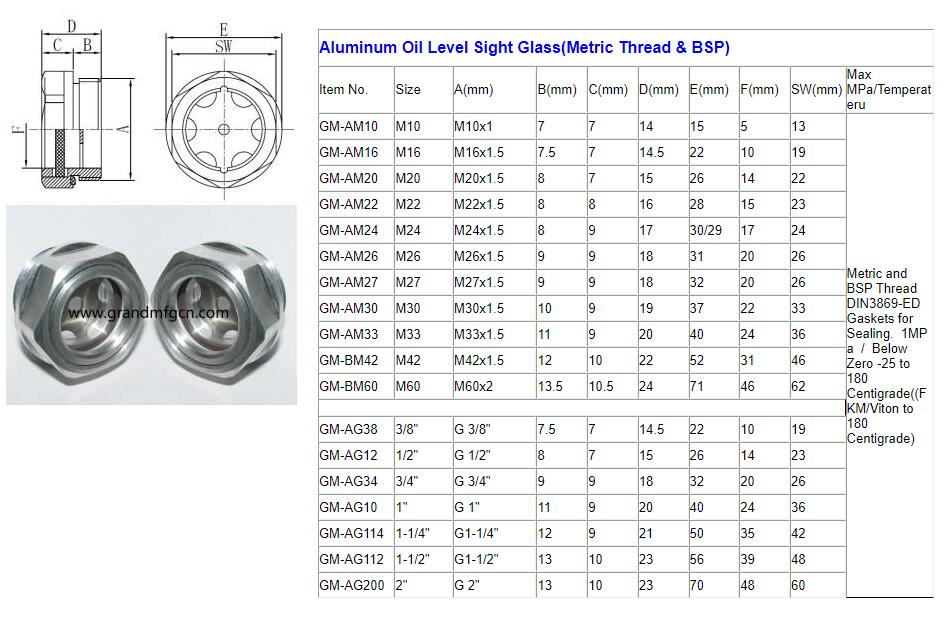

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

MILLED ALUMINUM SIGHT.jpg
