Aluminum oil sight glass plugs

GRANDMFG Aluminum Overflow Expansion Tank Sight Glass

Brass Oil level sight glass
Pump,Oil Reservior,Gearboxes,Speed Reducer,
Compressor and Power Transimission Oil Level Sight
Glasses Oil Level Gauge Indicator
INQUIRY

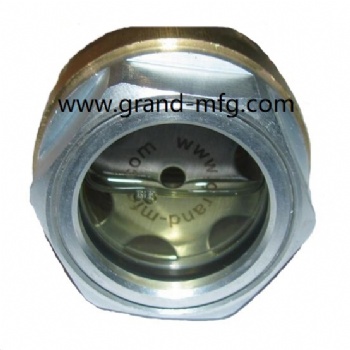

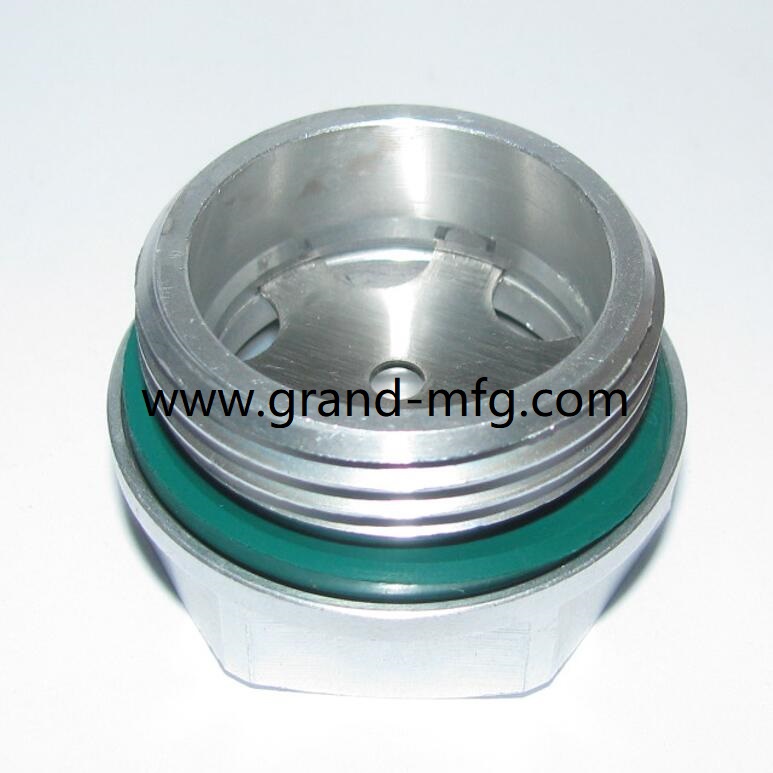

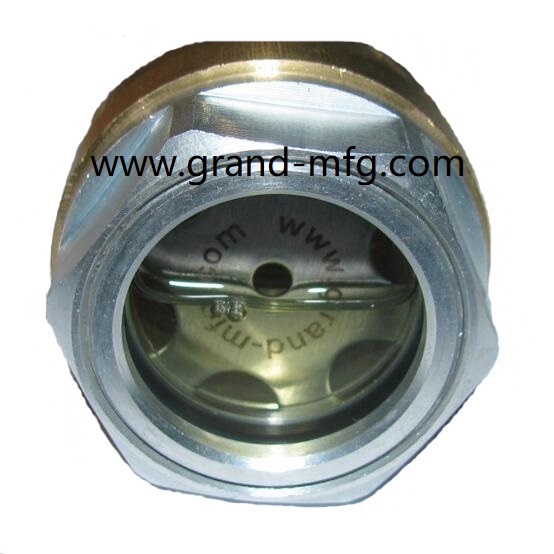

Aluminum sight glass for surge tank coolant tank,oil reservior,pump,gear reducers,compressor.

Material Body: Brass

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

ALUMINUM SIGHT GLASS SIZES CATALOGUE BELOW:

MILLED ALUMINUM SIGHT.jpg
