Aluminum oil sight glass plugs

Hexagon Aluminum Oil Sight Glass Indicator plugs( Metric Thread)

Hexagon Aluminum Oil Sight Glass Indicator plugs( Metric Thread)

GrandMfg® Hexagon Aluminum Oil Sight Glass Indicator plugs
( Metric Thread)
Aluminum Oil Level Sight Glass with Copper Seal and Stainless
Steel Reflector Perfect for Automotive Radiators
INQUIRY

GrandMfg® Hexagon Aluminum Oil Level Sight Glass(Metric Thread & BSP)

Custom precision liquid water flow sight glass supplied.

Material Body: Aluminum 6061 T6/Aluminum 6063

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

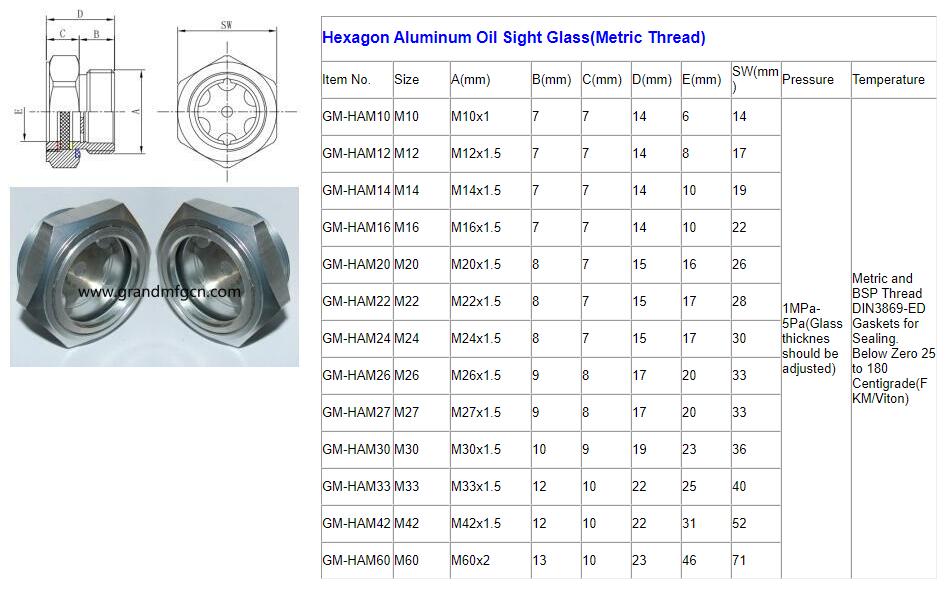

Hexagon Aluminum Oil Sight Glass(Metric Thread).jpg
