Aluminum oil sight glass plugs

GRANDMFG COMPRESSOR UNIT ALUMINUM SIGHT GLASS OIL LEVEL 1/2

GRANDMFG COMPRESSOR UNIT ALUMINUM SIGHT GLASS OIL LEVEL 1/2

aluminum oil level sight glass oil level gauge indicators
GRAND-MFG SIGHT GLASS SUPPLIED THE QUALITY ALUMINUM SIGHTS,
BRASS SIGHT GAUGE,STAINLESS STEEL SIGHT GLASS, AND CARBON STEEL
OIL SIGHT GLASS USED FOR GEARBOXES,COMPRESSORS,SPEED REDUCERS,
PUMPS,HYDRAULIC OIL TANK POWER TRANSMISSIONS.
INQUIRY

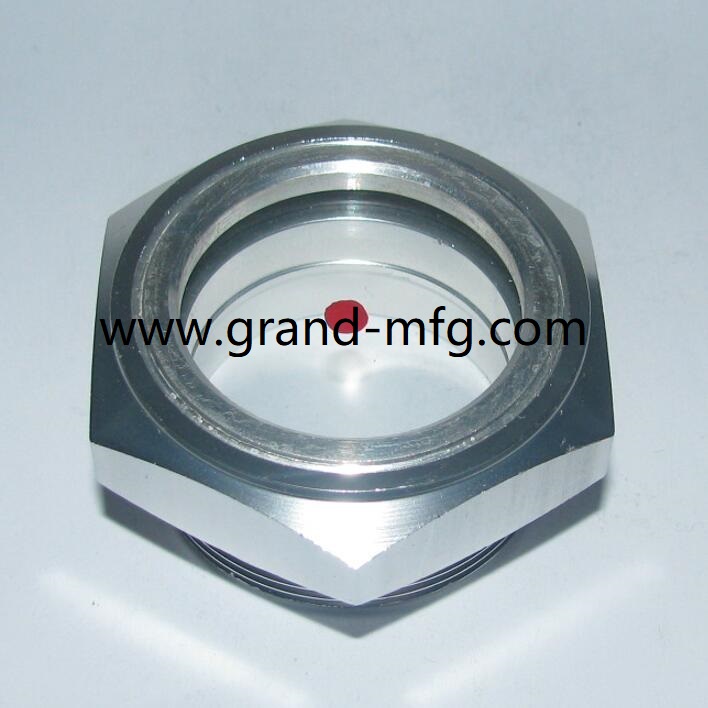

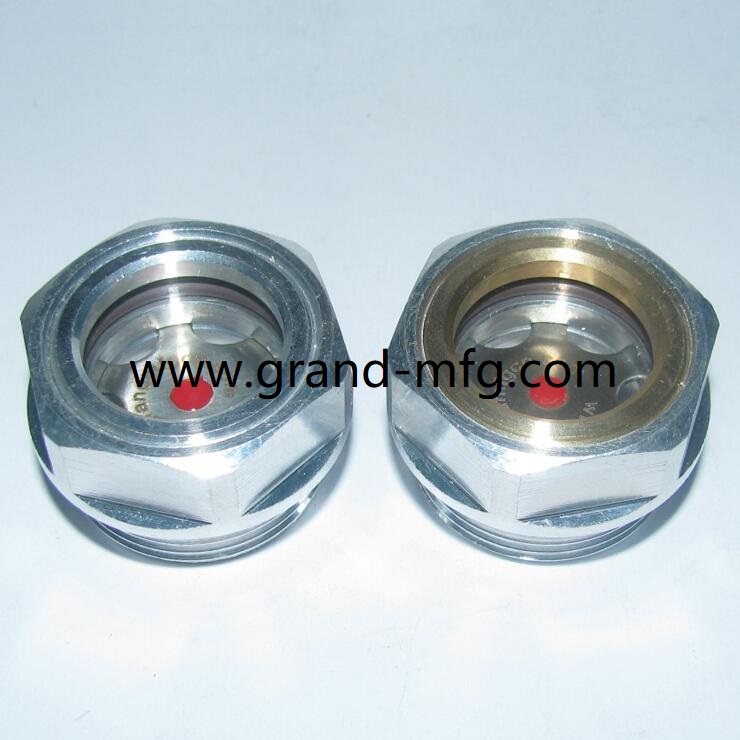

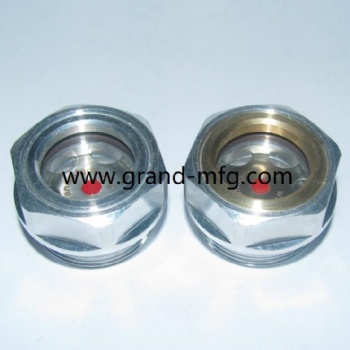

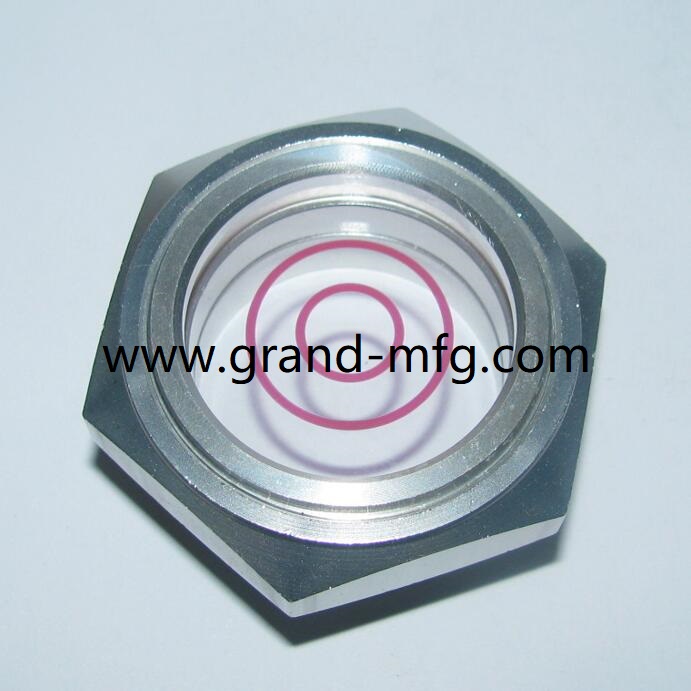

Aluminum Oil level sight glass

Material Body: Aluminum 6061 T6/Aluminum 6063

Finish: aluminum natural and aluminum oxidized color/ Anodizing color.

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

LINK TO: GO TO GRAND-MFG CATALOGUE
