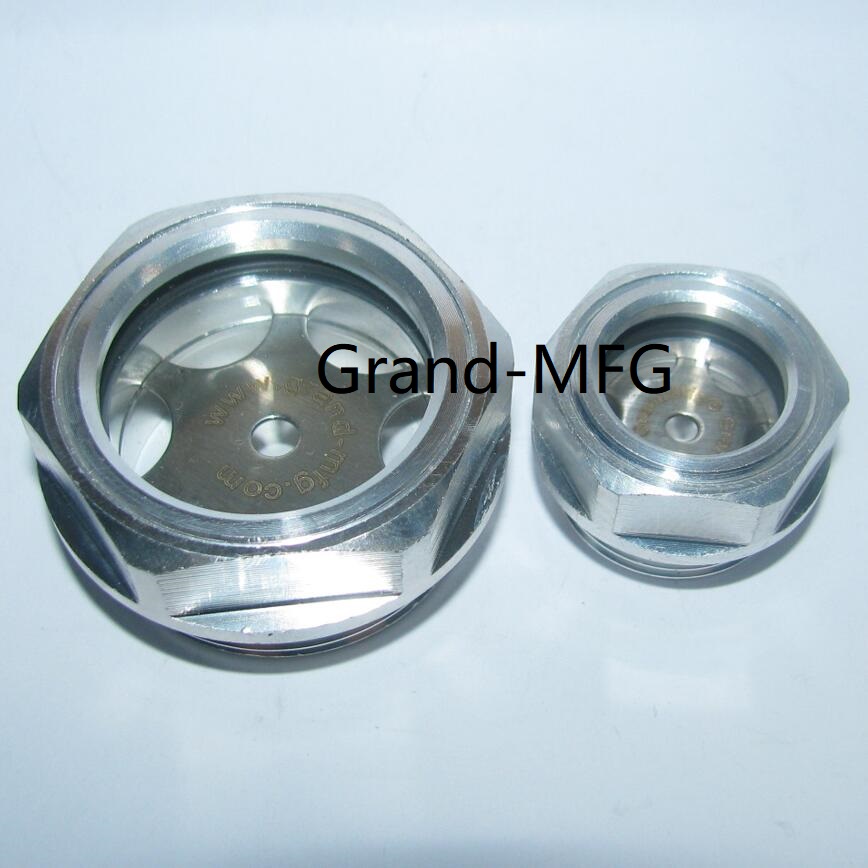

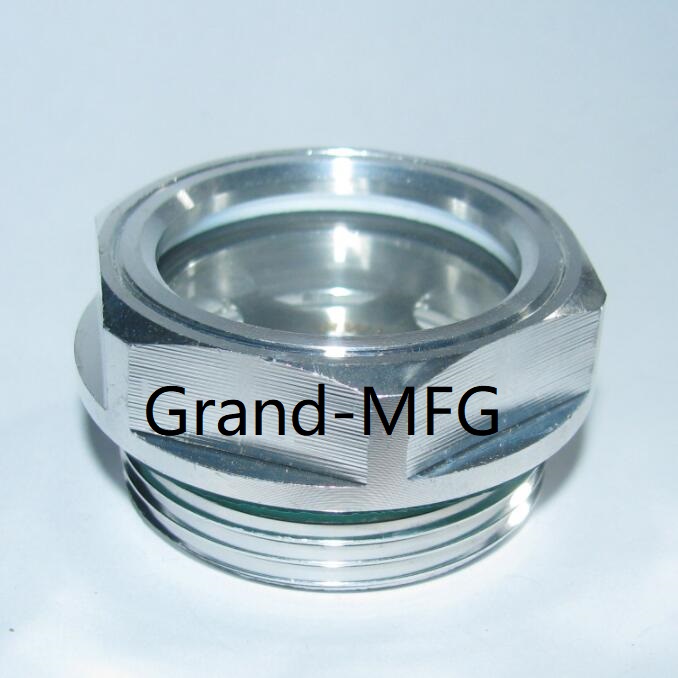

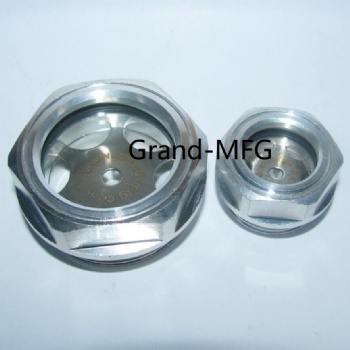

GM-AM20 Gearbox transmission GrandMfg® aluminum liquid sight glass

GrandMfg® Brass Oil level sight glass

GrandMfg® Aluminum oil sight glass

GrandMfg® BrandStainless steel sight glass

GrandMfg® Brand Plated Steel oil sight glass

Material Body:  Steel / Brass / Aluminum / Stainless steel

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

                 (Any type you can chose with reflector or without Reflector,  You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range:  5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage:  Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

ALUMINUM SIGHT GLASS SIZES CATALOGUE BELOW:

LINK TO:    GO TO GRAND-MFG CATALOGUE

Any special requirements just contact us directly.
