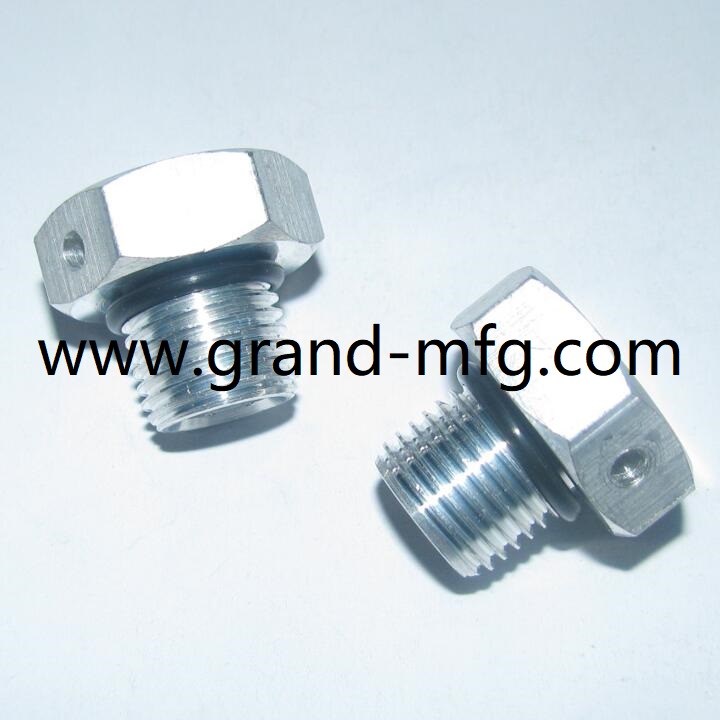

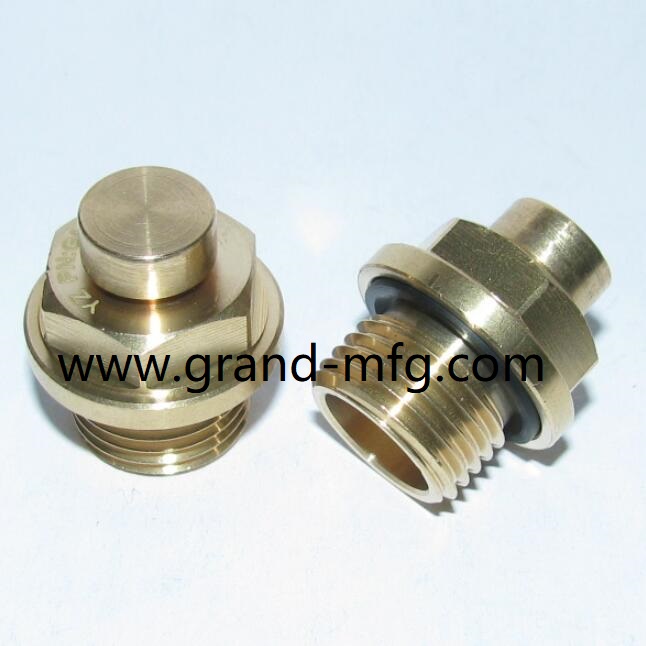

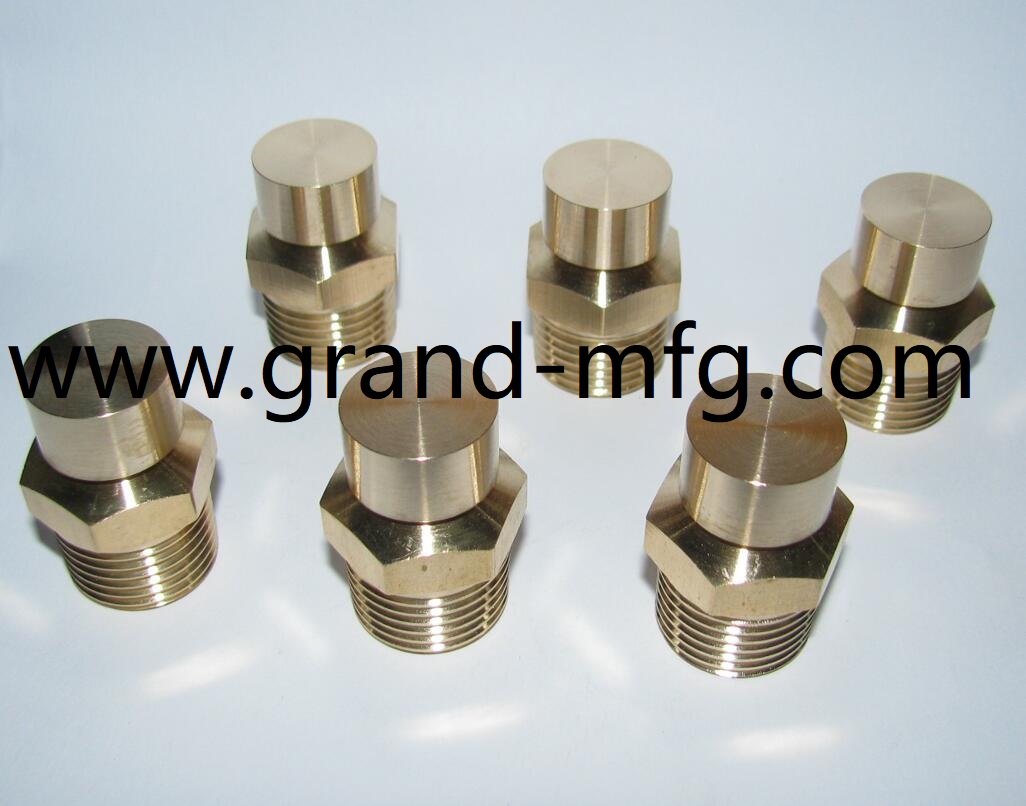

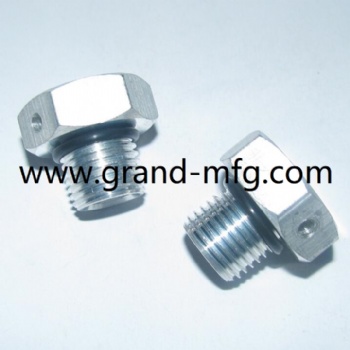

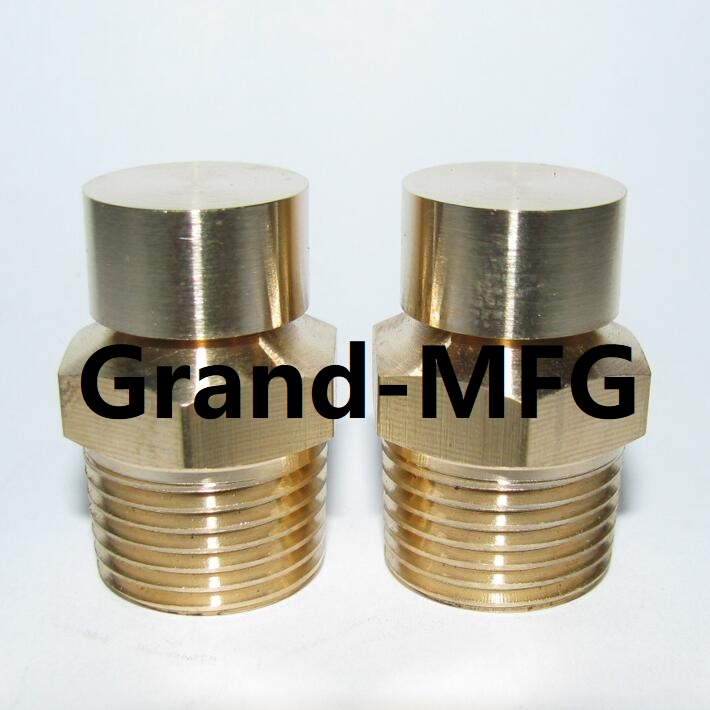

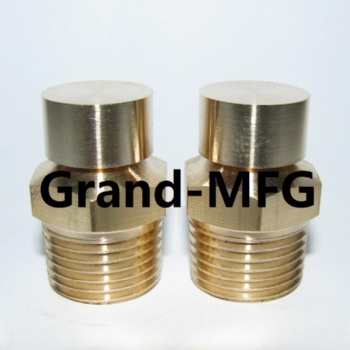

Waterproof brass breather vent plugs M16X1.5 M18X1.5 IN STOCK

Breather vents, Air Vent Plugs, Vent breather Plugs, Breather Plugs,

Breather drain plugs, vent plugs, Air released plugs,

Air releasing fitting,Breather cap,

Enhanced Brass Breather Vent,Hydraulic Breather Cap

Material: Brass, aluminum and steel
Finish:  Natural and Nickel Plated

Thread Type:  BSP,Metric,NPT and Any Size OEM are welcome.
Metric thread: M8 to M60

NPT thread: NPT1/8” to NPT1”

BSP thread: G1/8” to G2”

Precision control pressure type:

Working Pressure range:  0.01 MPa to 0.03MPa(0.1bar to 0.3bar).

Working Temperature Range:  -30 Celsius Degree to 180 Celsius Degree.

Function: Allow Sealed Pressure Systems to Vent Off Excess Pressure as Heat in System Builds up, Air Pressure is

Allowed Back into System as System Cools,

Protective cap prevents water or dirt from entering.Keep the system working in a certain low and good pressure improving

the transmission efficiency.

Brass/SS304 filter type: 40-60  Micron brass filter or Stainless steel 304 filter.

Function: Allow Sealed Pressure Systems to Vent Off Excess Pressure as Heat in System Builds up, Air Pressure is Allowed

 Back into System as System Cools,

Protective cap prevents water or dirt from entering.

Usage: Pump, Single Acting cylinders or valves, Crank Cases, Storage Tanks,Thin-wall container, Radiator, Hydraulic tanks,

hydraulic reservoir,Hydraulic Cylinders,

receivers,manifolds,Gearboxes, Speed Reducer, Compressor and Power Transmission.

LINK TO:    GO TO GRAND-MFG CATALOGUE

Any special requirements just contact us directly.
