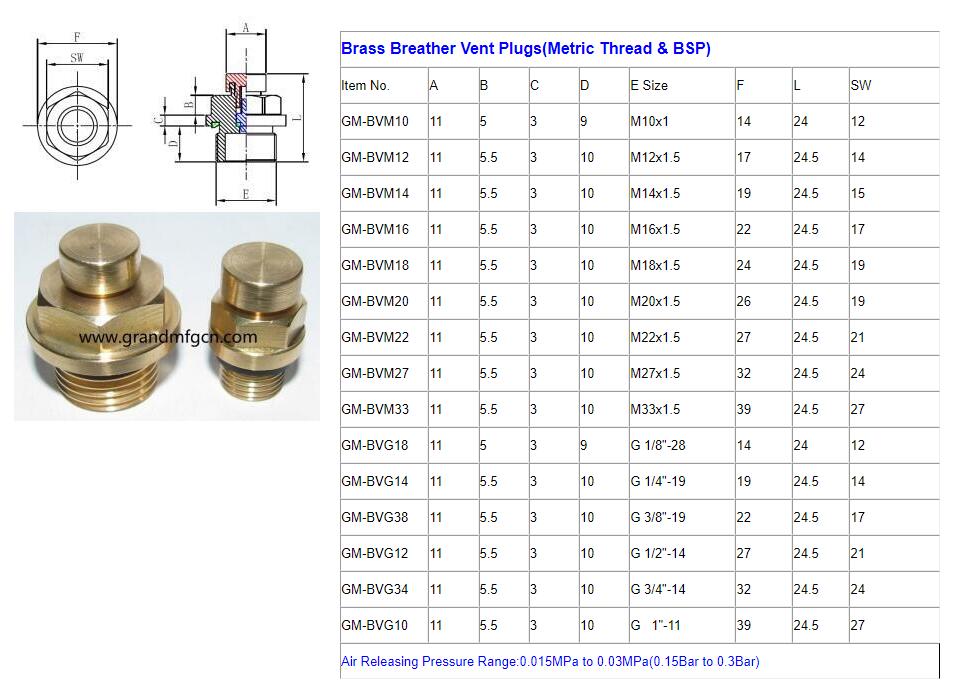

BRASS BREATHER VENT PLUGS NPT1/2" 3/4" 1/4" 1"
Material: Brass, aluminum and steel
Finish: Natural and Nickel Plated
Thread Type: BSP,Metric,NPT and Any Size OEM are welcome.
Metric thread: M8 to M60
NPT thread: NPT1/8” to NPT1”
BSP thread: G1/8” to G2”
Precision control pressure type:
Working Pressure range: 0.01 MPa to 0.03MPa(0.1bar to 0.3bar).
Working Temperature Range: -30 Celsius Degree to 180 Celsius Degree.
Function: Allow Sealed Pressure Systems to Vent Off Excess Pressure as Heat in System Builds up,
Air Pressure is Allowed Back into System as System Cools,
Protective cap prevents water or dirt from entering.Keep the system working in a certain low and good
pressure improving the transmission efficiency.
LINK TO: GO TO GRAND-MFG CATALOGUE
Any special requirements just contact us directly.
