Stainless steel oil sight glass

Cla-Val Fire System Waste Cones Stainless Steel Oil Sight Glass plug NPT2 Inch

ASEM Air Speparator Stainless Steel Oil Level Sight Glass
Material Body: Stainless steel 304,ss304L,ss316,ss316L
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 220'C
Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
INQUIRY

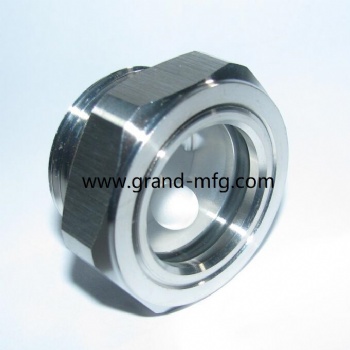

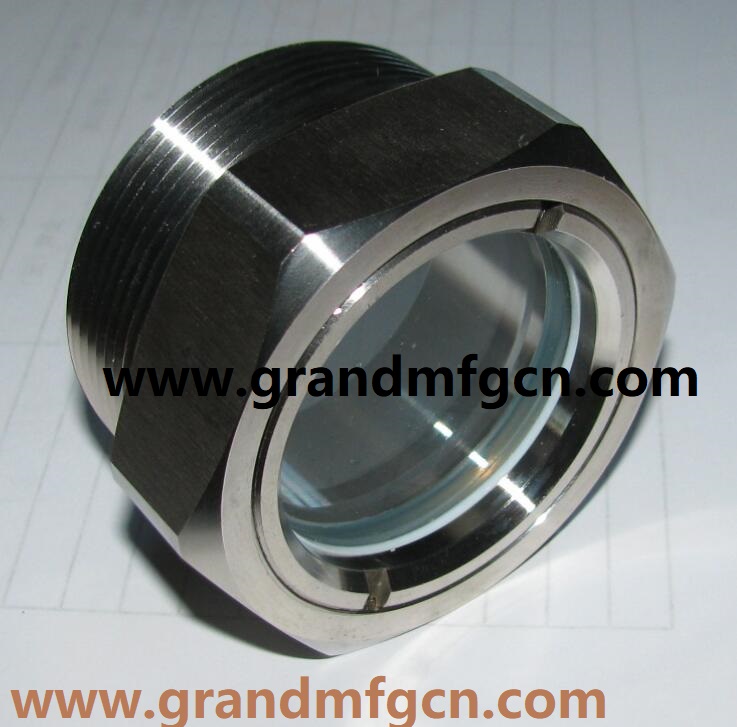

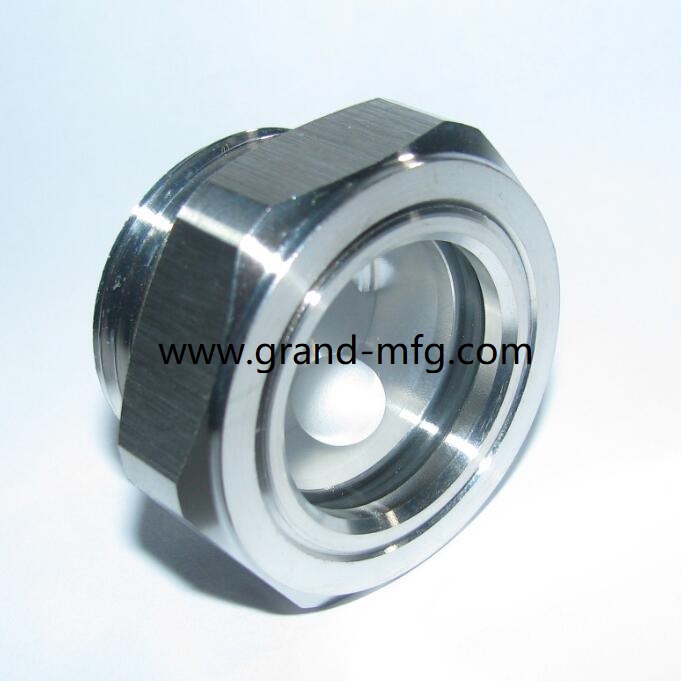

Stainless Steel 304 Oil level sight glass(NPT Thread)

Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

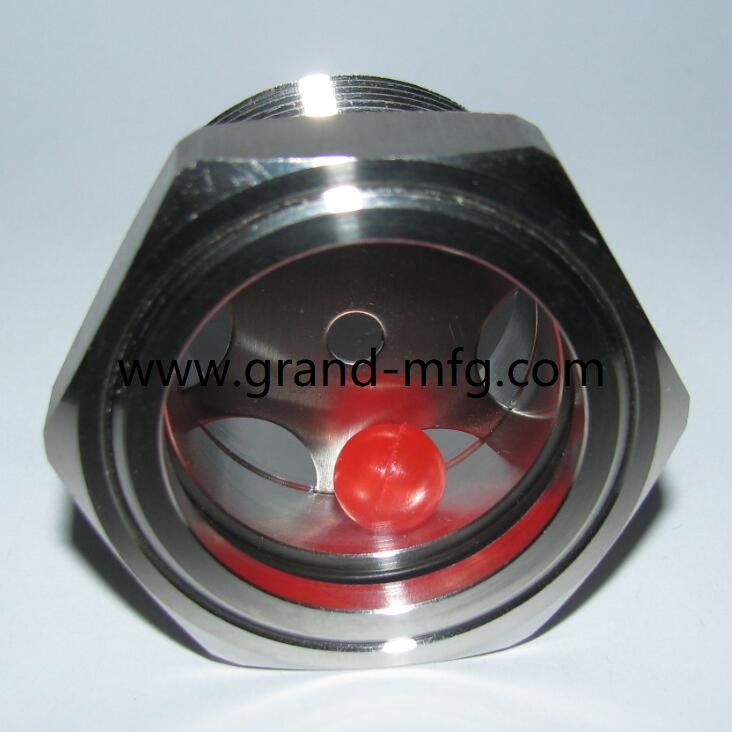

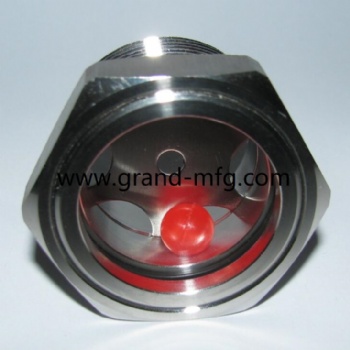

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 220'C

Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
