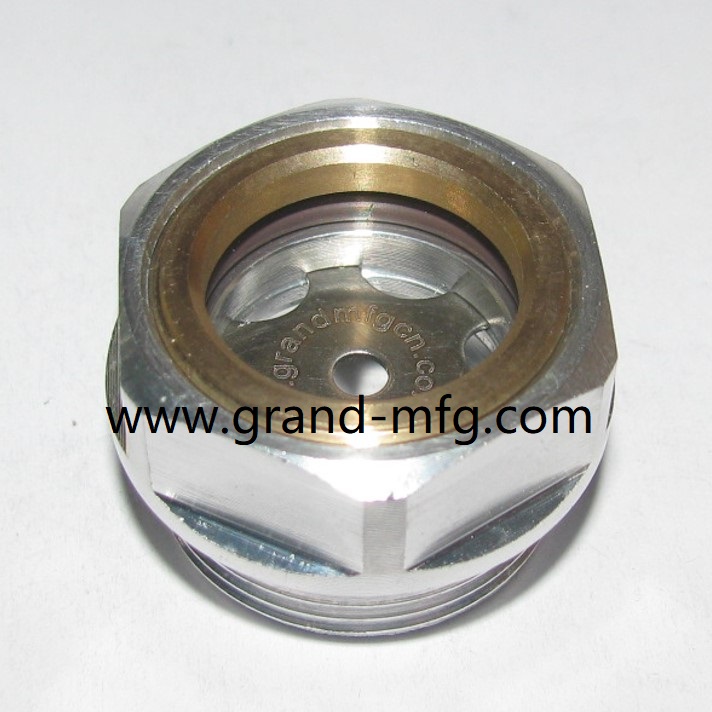

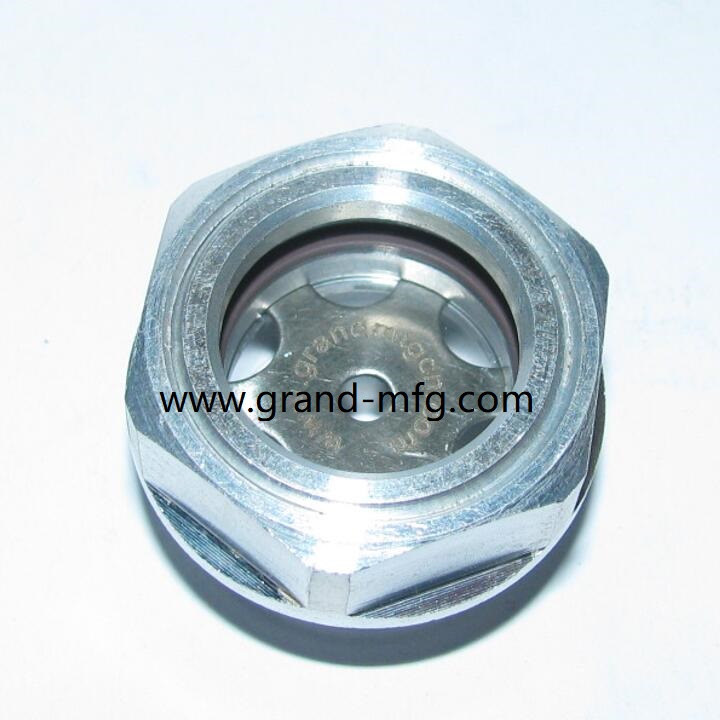

Aluminum oil sight glass plugs

Metric Roots Blower Booster Vacuum Pump Oil Levels Sight Glass

Brass Oil level sight glass
Roots Blowers sight glass
oil levels
Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and
Power Transimission Oil Level Sight Glasses Oil Level Gauge Indicator
INQUIRY

Oil level sight glass

Material Body: Brass/aluminum

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

ALUMINUM SIGHT GLASS SIZES CATALOGUE BELOW:

MILLED ALUMINUM SIGHT.jpg
