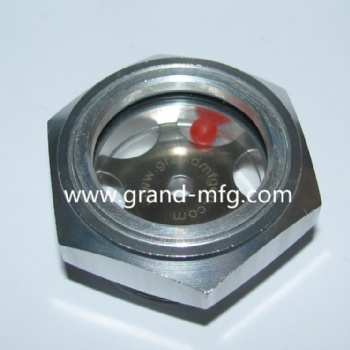

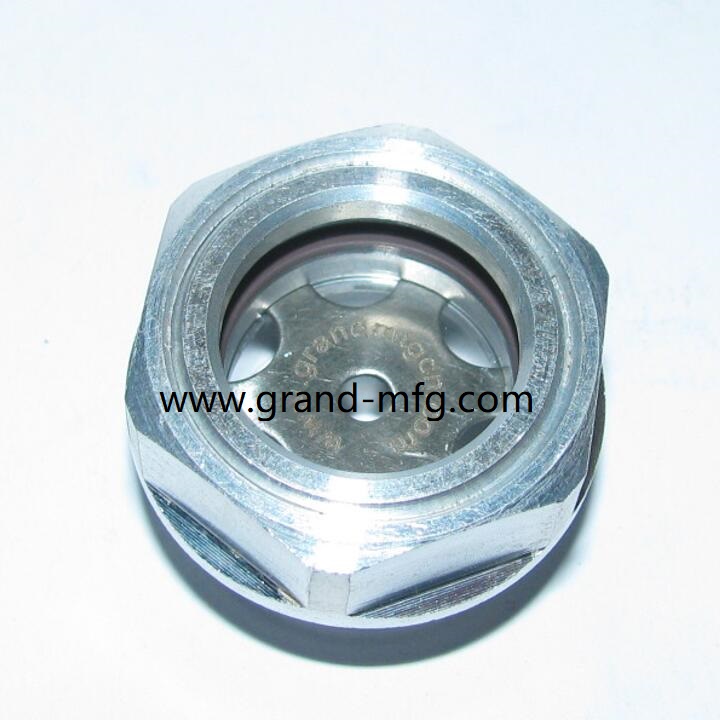

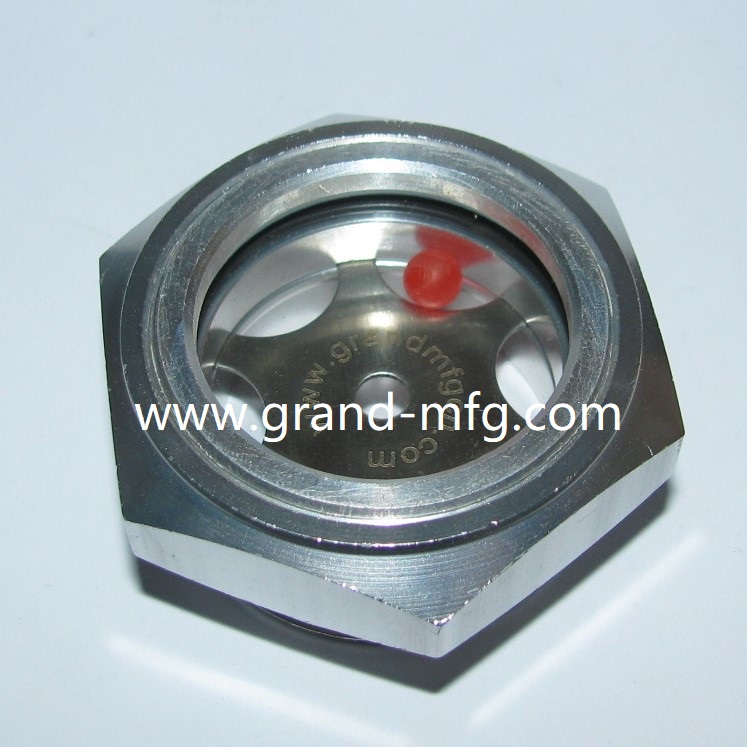

Aluminum oil sight glass plugs

Steel Surge Tank Coolant Sight Glass Aluminum Coolant Level Sight Glass 3/4

Brass Oil level sight glass
Pump,Oil Receivers,Gearboxes,Speed Reducer,
Compressor and Power Transimission Oil Level Sight Glasses
Oil Level Gauge Indicator
INQUIRY

Liquid level sight glass

used for machinery radiator cooling system surge tank coolant tank.

Material Body: Brass

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

BSP BRASS SIGHTS 2.JPG
