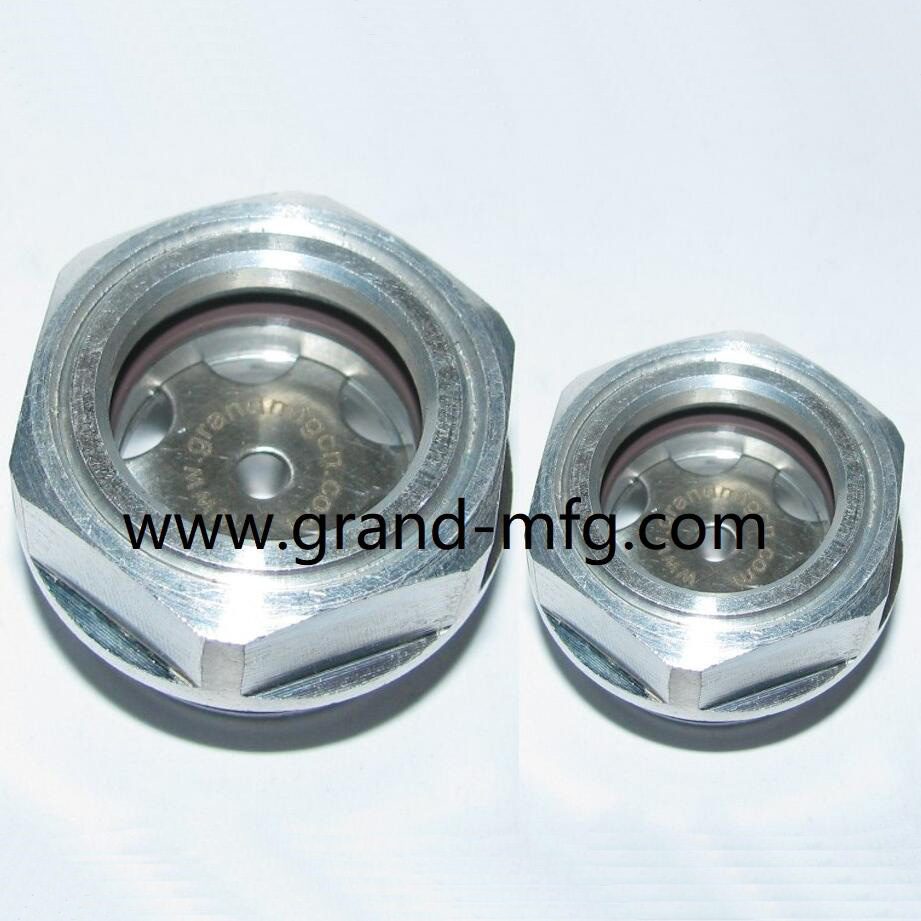

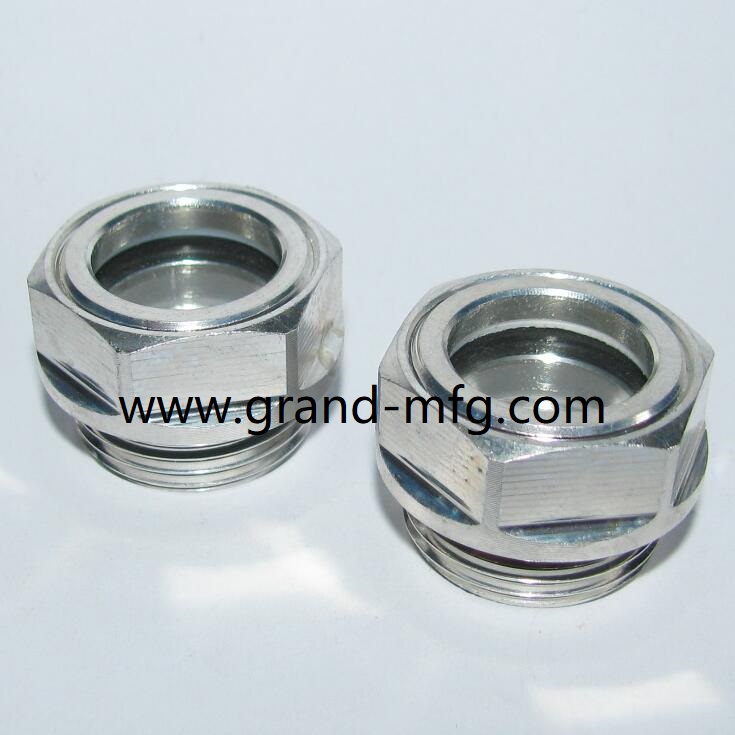

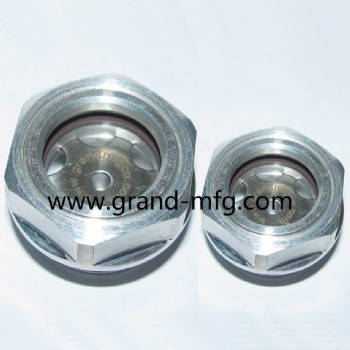

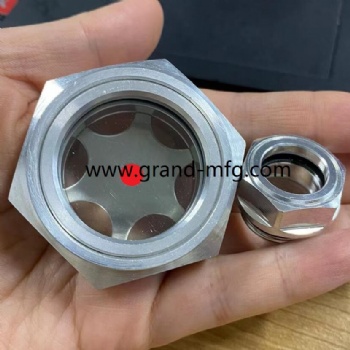

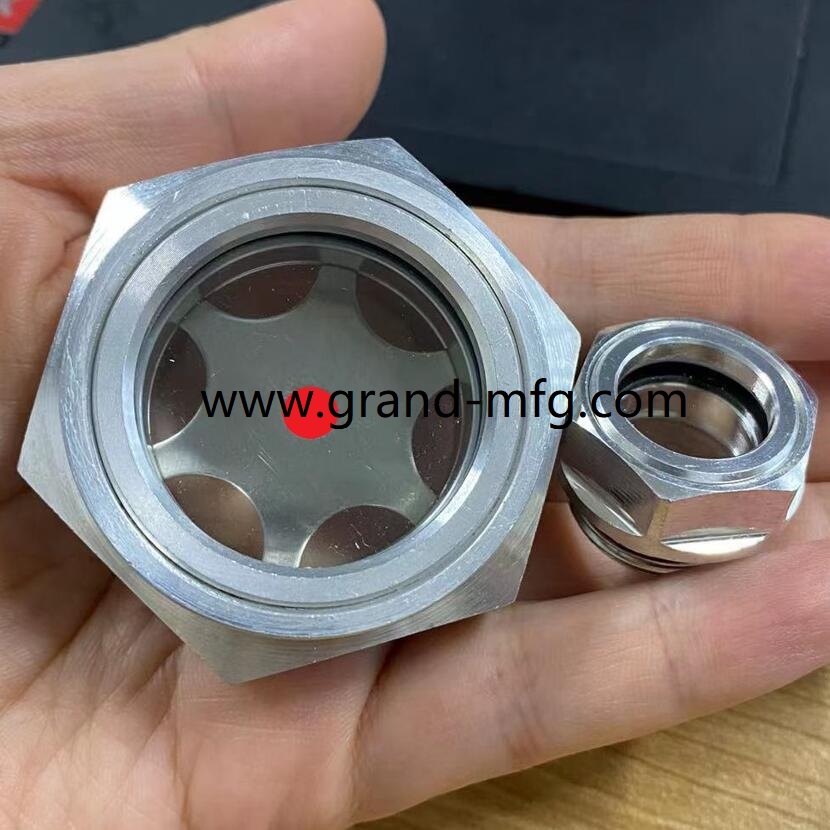

Aluminum oil sight glass plugs

Speed reducers BSP 1/8 Aluminum Oil Sight Glass Oil Level Window For Air Compressor Gearbox Vacuum Pump

Speed reducers BSP 1/8 Aluminum Oil Sight Glass Oil Level Window For Air Compressor Gearbox Vacuum Pump

Brass Oil level sight glass
Pump,Oil Reservior,Gearboxes,Speed Reducer,
Compressor and Power Transimission Oil Level Sight Glasses
Oil Level Gauge Indicator
INQUIRY

Oil level sight glass used for compressor,speed reducer,power transimission,pumps,gearbox.

Material Body: Brass/aluminum/stainless steel/carbon steel

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Reserviors,Gearboxes,Speed Reducer,Compressor and Power Transimission.

ALUMINUM SIGHT GLASS SIZES CATALOGUE BELOW:

MILLED ALUMINUM SIGHT.jpg
