Stainless steel oil sight glass

Chemical Process Pumps Rotech Stainless Steel 304 Oil Sight Glass Window Plug Viewpots Gauge Indicator

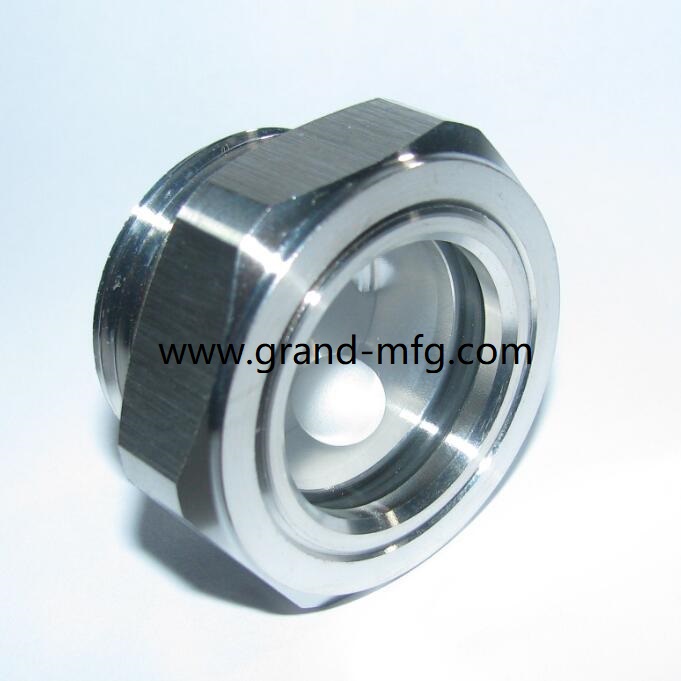

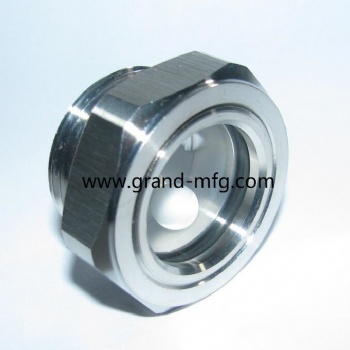

Hexagon Stainless Steel 304 Oil Sight Glass
GrandMfg® stainless Steel Oil level sight glass Ölschauglas
Borosilicate Glass Stainless Steel Liquid Sight Glass for Clear and Accurate Oil Level Reading
SUS304L Stainless Steel Liquid Sight Glass with Borosilicate Glass for High Pressure
Tempered Glass Stainless Steel Liquid Sight Glass for Precise Oil Level Monitoring
INQUIRY

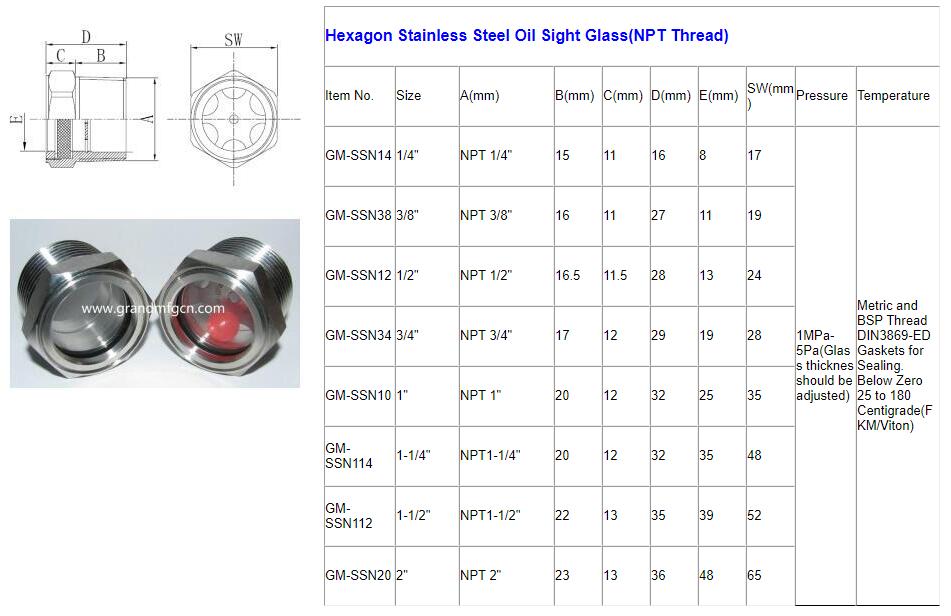

Stainless Steel 304 Oil level sight glass(NPT Thread)

Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 220'C

Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

Hexagon Stainless Steel Oil Sight Glass(NPT Thread).jpg
