Aluminum oil sight glass plugs

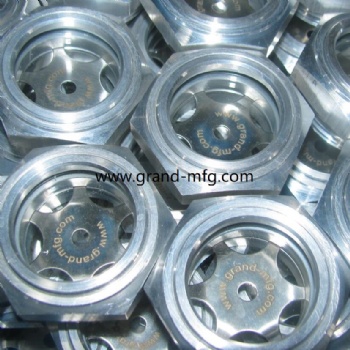

high speed marine gearbox transmission reducer GrandMfg® Aluminum oil sight glass

high speed marine gearbox transmission reducer GrandMfg® Aluminum oil sight glass

GrandMfg® Aluminum Oil level sight glass
Pump,Oil Receivers,Gearboxes,Speed Reducer,
Compressor and Power Transimission Oil Level
Sight Glasses Oil Level Gauge Indicator,
INQUIRY

GrandMfg® Aluminum Oil level sight glass indicator

Material Body: aluminum 6061,aluminum alloy

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

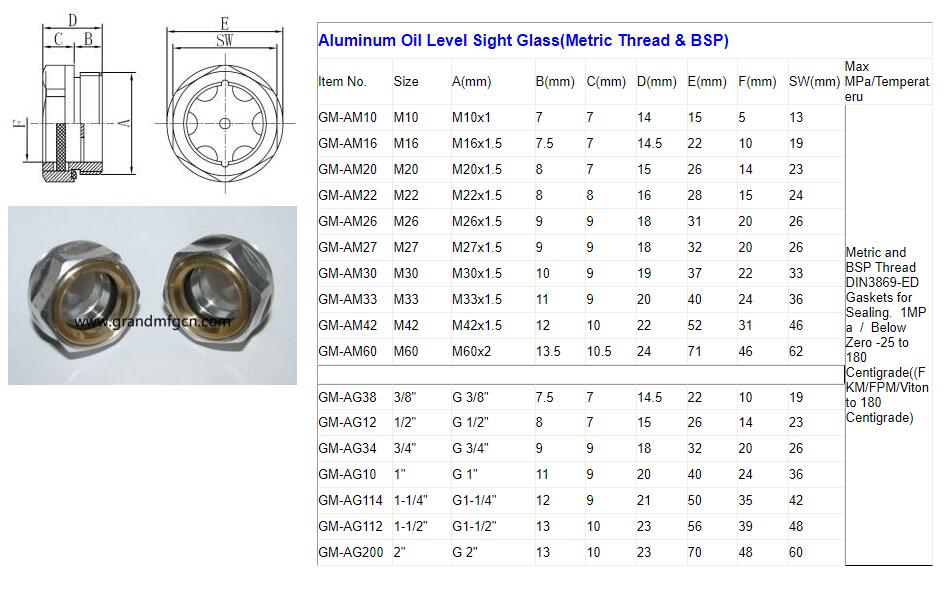

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission

MILLED ALUMINUM SIGHT.jpg
